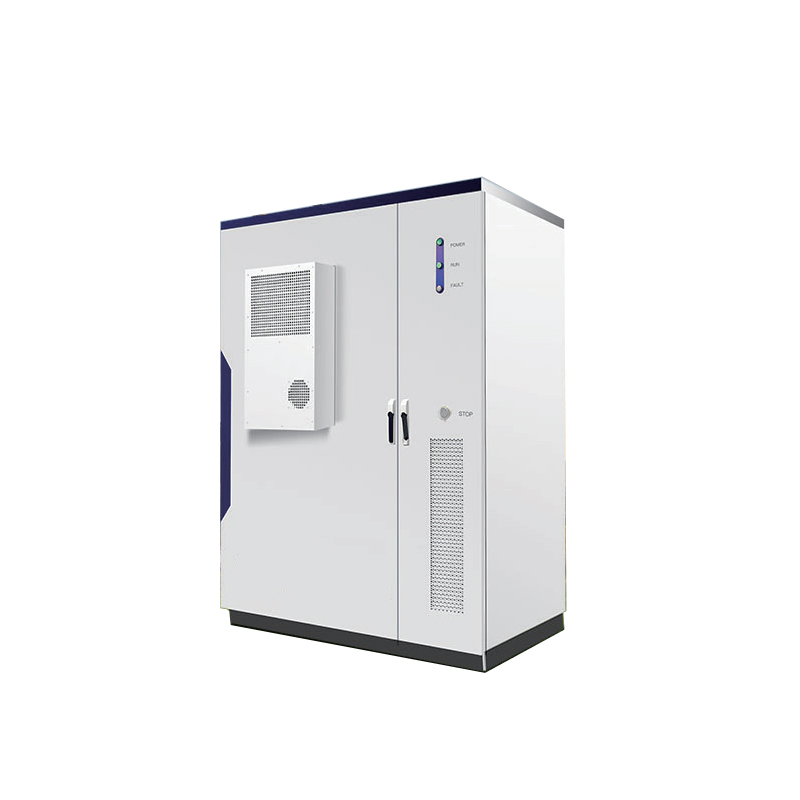

Outdoor Cabinet-Type Air-Cooled Energy Storage System 60KW/100KWH
High-Performance DSP

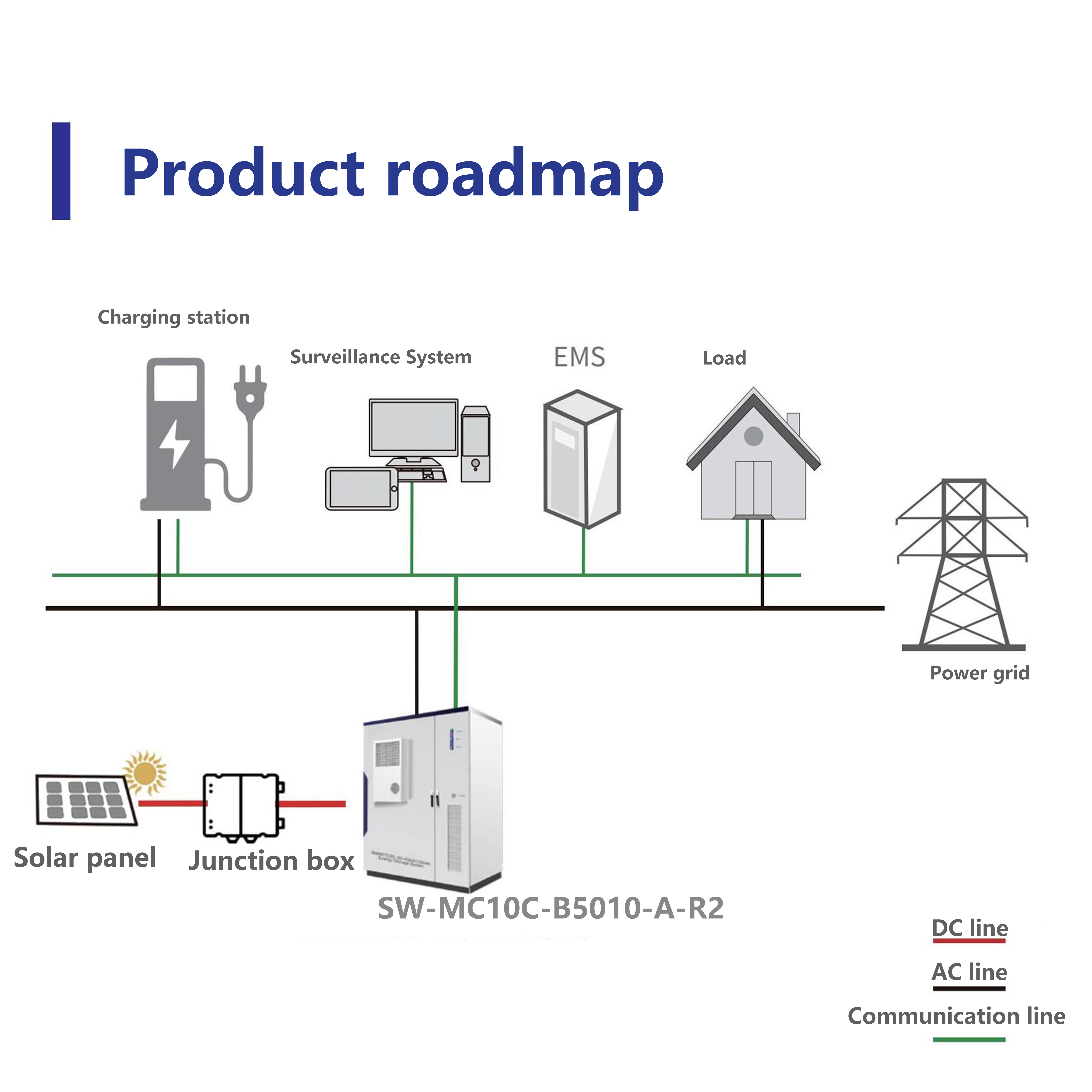

Integrated PV, Inverter, and Energy Storage
EMS Smart Energy Management System
Intelligent Control System
Integrated PV, Inverter, and Energy Storage
EMS Smart Energy Management System
Intelligent Control System
Product Specifications
| Model | SW-ESS60KR100C-R | SW-ESS105KR215C |
| Maximum Power (kW) | 39.8kW+39.8kW | 50KW*2 |
| Maximum DC Voltage (V) | 850VDC | 1000V |
| MPPT Voltage Range (V) | 200~800V | 300–1000 (450 V–850 V at full load) |
| Number of MPPT Channels | 2 | 1 |
| Number of PV Strings Supported | 2 | 1 |
| Maximum Input Current per MPPT Channel (A) | 32A/32A | 80A |
| Battery Input Parameters | ||
| Battery Type | Lithium iron phosphate (LiFePO₄) | |
| Battery Modules | 51.2V 200AH battery module | 51.2V 280AH battery module |
| Battery Capacity (kWh) | 102.4KWH | 215KWH |
| Nominal Voltage (V) | 512V | 768V |
| Battery Voltage Range (V) | 432-608V | 648V~912V |
| Number of Battery Strings | 1 | |
| Standard Charge/Discharge Current (A) | 66A | |
| Maximum Charge Current (A) | 100A | 140A |
| Maximum Discharge Current (A) | 100A | 140A |
| Output Parameters (AC) | ||
| Rated Output Power (kW) | 60KW | 105KW |
| Maximum Apparent Power (kVA) | 66KVA | 116KVA |
| Maximum Output Current (A) | 87A | 167A |
| Grid Voltage/Range (V) | 400V/230V | 230V/400V,230/400V,3W/N+PE |
| Grid Frequency (Hz) | 50/60((±5)Hz | 50/60HZ |
| Overload Protection | 48A < load ≤ 54A/100 ms 54A < load ≤ 65A/100 ms |
|
| General Specifications | ||
| Outdoor Cabinet Dimensions W×D×H (mm) | 1600*1026*2115MM | 1360*1300*1950MM |
| Product Weight (kg) | Approximately 1500 kg | |
| Operating Temperature Range | -30℃ to +55℃ | |
| Relative Humidity | 5–95% RH (non-condensing) | |
| Protection Rating | IP54 | |
| PCS Cooling Method | Intelligent air-cooled | |
| Battery Module Cooling Method | Air conditioning system | |
