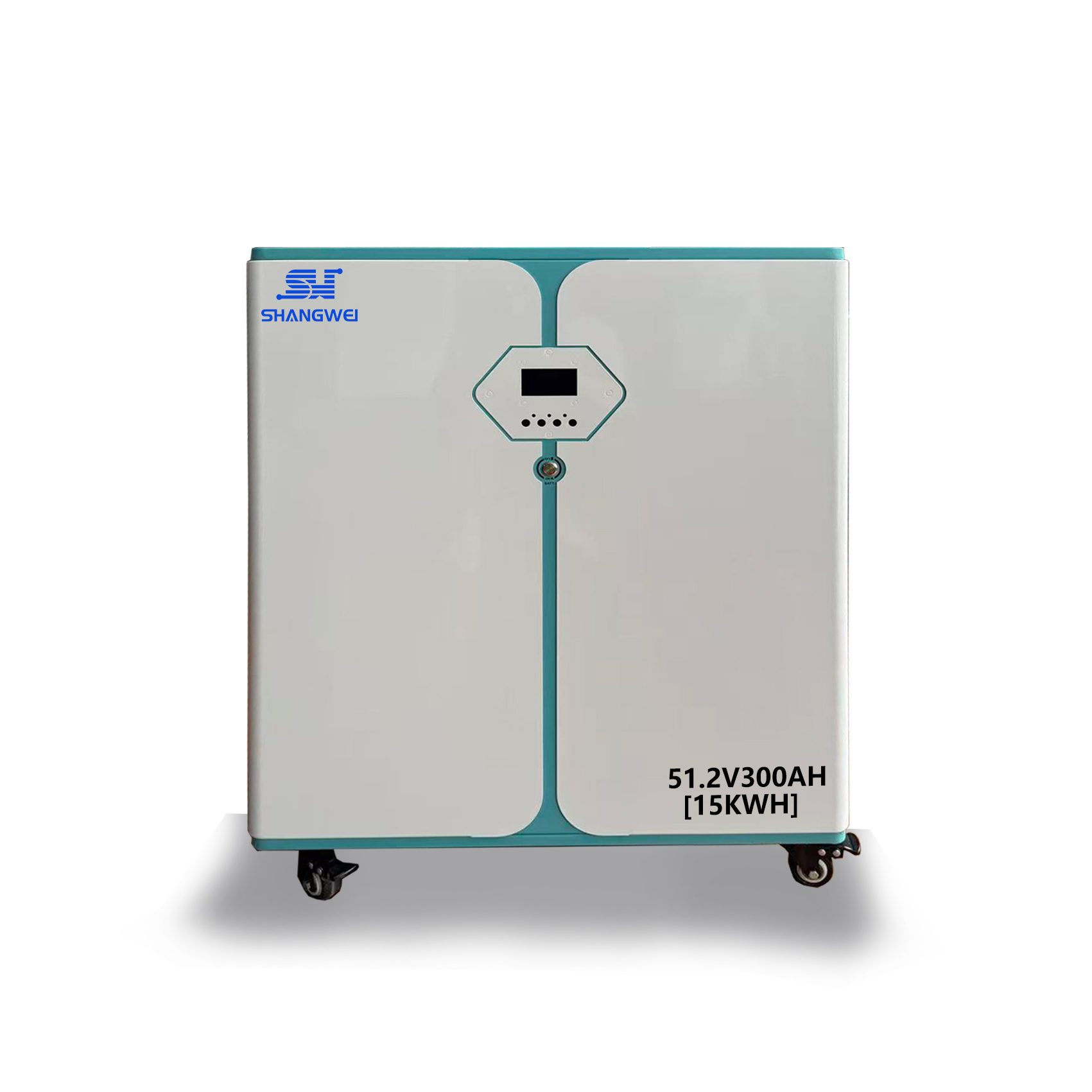

15 kWh-6.2 kW Home Energy Storage All-in-One Unit
Cycle life ≥ 6000 cycles
Brand-new, Grade A batteries
BMS (Battery Management System)
Features communication capabilities
and is network-ready for expansion
Brand-new, Grade A batteries
BMS (Battery Management System)
Features communication capabilities
and is network-ready for expansion
Product Features
1. Integrated Design: Featuring a 15360 Wh battery with a compact, portable design that maximizes space efficiency.
2. Side-Mounted Ports: Prevents heat buildup inside the unit, enhancing heat dissipation.
3. Network Connectivity: Enables smart energy scheduling and optimized allocation, improving energy efficiency while ensuring a stable and reliable power supply.
4. Green Energy: Utilizes solar panels to support a carbon-neutral lifestyle and enhance system stability.
5. Flexible Mobility: Easy to transport, making installation and maintenance more convenient.
6. BMS Intelligent Management System: Six-layer protection ensures safe and worry-free use.
Product Specifications
| Model | SW15-6.2KW |
| Battery | |
| Nominal voltage | 51.2V |
| Nominal eapacity | 300Ah |
| Rated energy | 15360WH |
| Charge termination voltage | 58.4V |
| Discharge termination voltage | 44.8-46.5V |
| Inverter | |
| Rated Power | 6.2KW |
| Input frequency | 60Hz/50Hz |
| Solar/utility power input | 6500W(60-450V)PV+AC 120A MPPT:PV120A |
| Output voltage | 100V/110V/220V/230VAC±5% |
| Output waveform | Pure Sine Wave |
| Communication interface | RS232、RS485、CAN |
| Work environment | Temperature:-20°~60°;Humidity:≤95%;Altitude:≤4000m |
| Protection function | Over voltage,low voltage,over load,short circuit,over temperature,ete. |
| Product & package size | 660*280*730/750*350*880mm |
| Product & package weight | 125/143kg |
