New off-grid inverter: completely eliminates the need for manual switching, solving the problem of equipment damage caused by system shutdown due to low battery levels

Foreword: Disadvantages of Older, Obsolete Off-Grid Inverters

However, there is a common misconception amongst industry users: just because older off-grid inverters required manual switching does not mean that the latest generation of pure off-grid inverters still suffer from this shortcoming.

With the iterative upgrades in photovoltaic storage technology, the new generation of smart, purely off-grid inverters has comprehensively optimised power source switching logic and upgraded built-in control programmes and hardware modules. This has completely resolved the drawbacks of forced shutdowns due to low battery levels and the need for manual switching, enabling fully automatic, seamless switching between mains power, photovoltaic power and the battery without the need for human intervention. This perfectly avoids equipment wear and tear caused by frequent start-stops and power-off switching.

To understand the key differences between new and old equipment, one must first recognise the design limitations of older off-grid inverters. Traditional, obsolete off-grid inverters feature a simple structure and straightforward control logic; they support only a single inverter output mode, with the system’s power supply priority fixed at ‘battery first’. The equipment relies entirely on DC power from the battery for inverter operation throughout its runtime, lacking intelligent switching algorithms and an automatic grid bypass module. At night, when there is no sunlight and PV charging ceases, if the battery continues to discharge to the under-voltage threshold, the inverter will forcibly cut off the output and shut down the entire unit to protect the battery from being over-discharged and rendered unusable. At this point, the load is completely de-energised, and the equipment will not automatically connect to the mains grid. O&M personnel must manually switch off the inverter on-site and switch the mains circuit breaker to restore power to the load; The following day, once PV charging resumes and the battery voltage recovers, the system must be manually switched back to inverter mode, with the entire process relying on manual intervention.

This frequent manual disconnection and reconnection causes significant damage to electrical equipment. For various electrical appliances operating normally, a sudden power cut can lead to the abrupt stoppage of motors, disordered residual voltages in circuit capacitors, and the loss of programme data; Repeated start-stop cycles accelerate the ageing of internal wiring, compressors and motherboards, significantly increasing the likelihood of equipment burnout and failure. This is the fundamental reason behind user feedback that ‘frequent manual switching causes damage to electrical appliances’. Furthermore, in remote, unmanned off-grid power stations, domestic photovoltaic storage systems and standalone power supply scenarios for private villas, frequent manual switching is not only time-consuming and labour-intensive but also leads to power interruptions, affecting the stability of electricity supply for daily production and living.

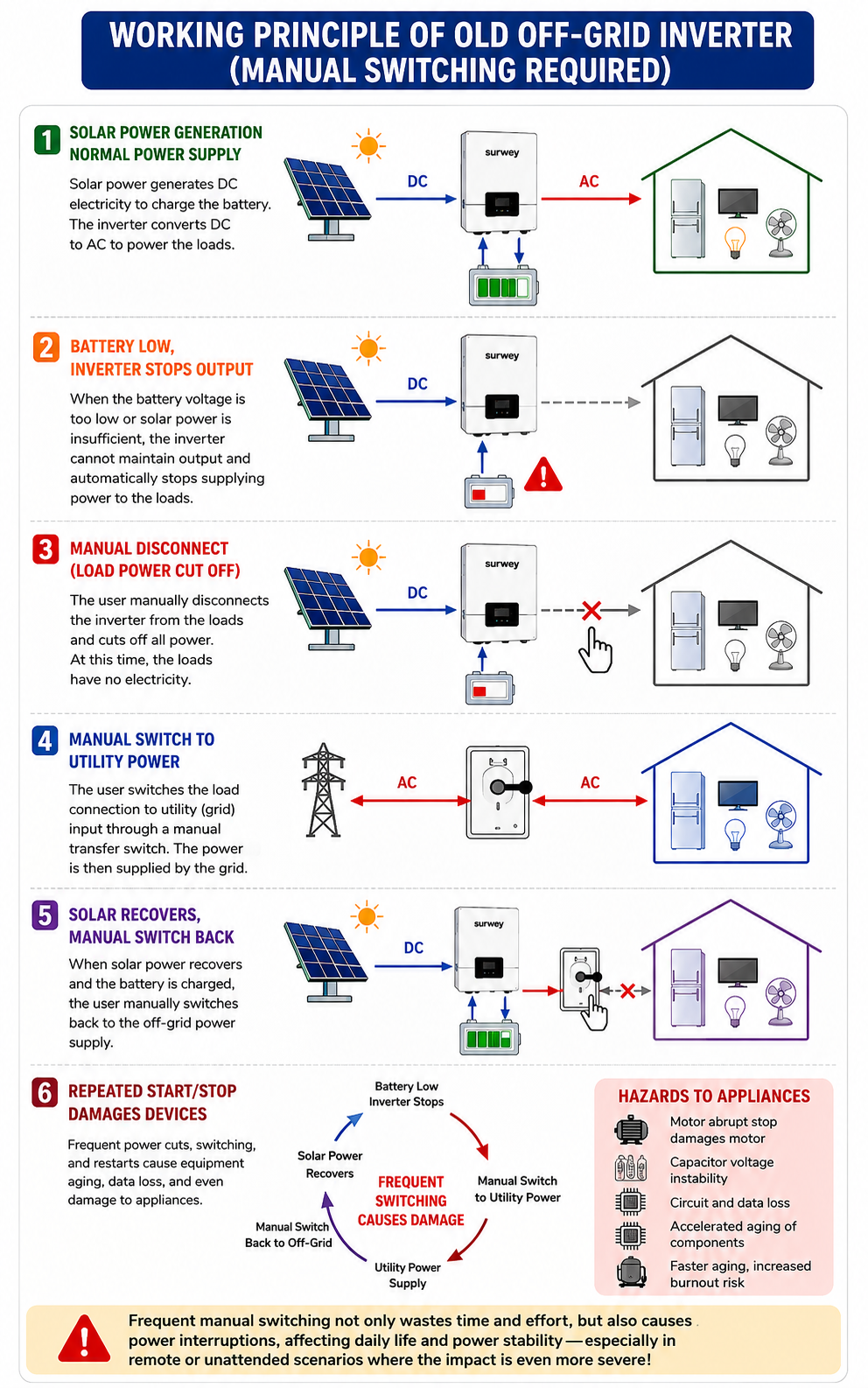

Schematic diagram illustrating the working principle of an older off-grid inverter

The new generation of smart, fully off-grid inverters has undergone a comprehensive upgrade in both hardware architecture and software algorithms. They come as standard with three core functions: automatic grid-off-grid switching, intelligent battery under-voltage bypass and seamless voltage-stabilised backup power, thereby eliminating the need for manual operation entirely. The new unit incorporates a high-precision voltage detection module, an intelligent relay switching system and a proprietary load priority scheduling algorithm. It monitors three key parameters—battery voltage, PV power and mains status—in real time 24 hours a day, automatically switching the power supply path according to system conditions, ensuring zero disruption, zero downtime and zero manual intervention throughout the process.

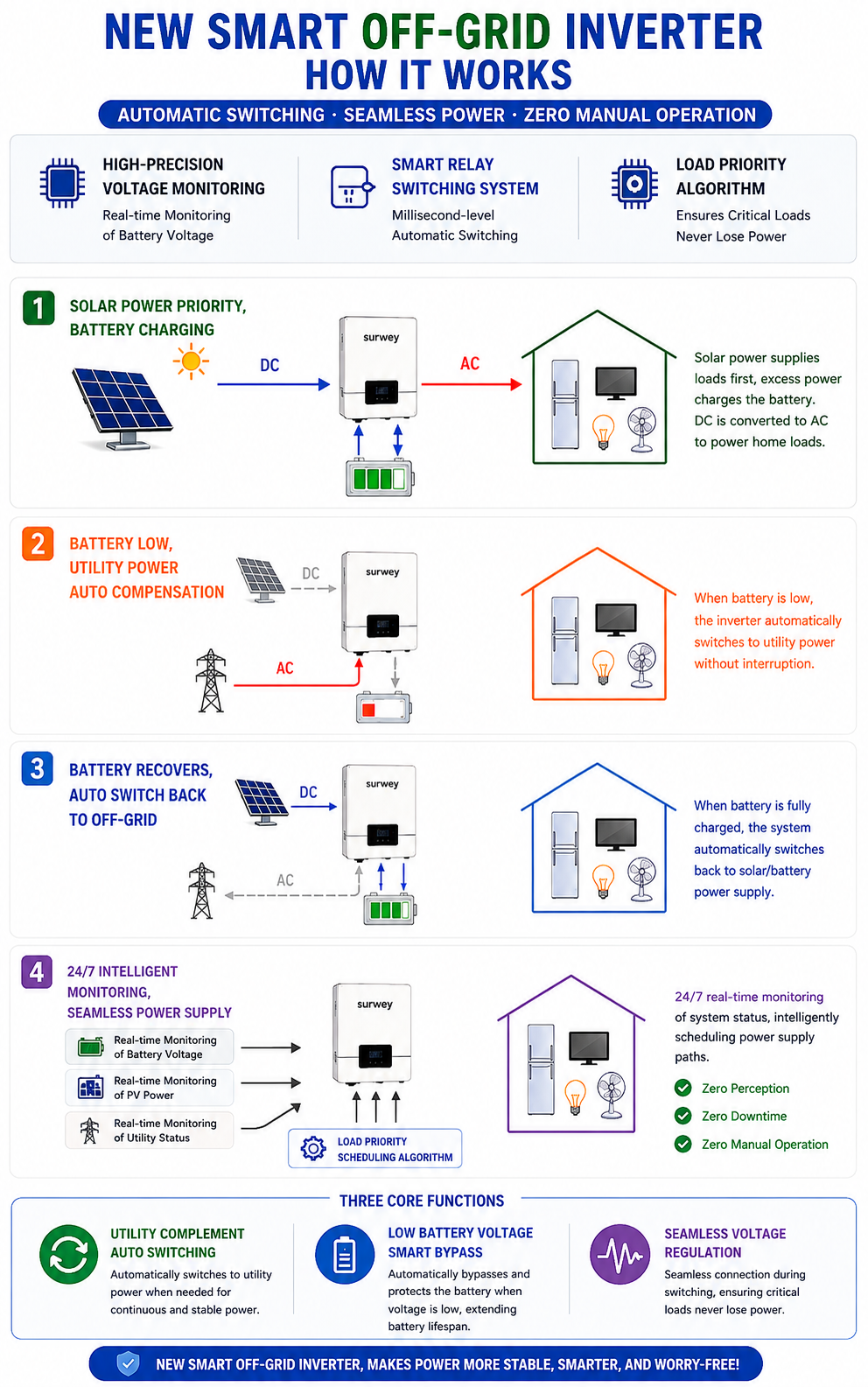

Schematic diagram illustrating the operating principle of a new off-grid inverter

Its core operating principle is clear and well-established: the system employs a three-tier power supply logic by default, prioritising solar power, stabilising the battery voltage and using the mains as a backup. During the day when sunlight is abundant, electricity generated by the solar panels is prioritised for supplying the load, with any surplus automatically stored in the battery; when sunlight is insufficient, or in the evening and at night when solar generation ceases, the battery continues to supply power via the inverter, ensuring the stable operation of the load. When the battery is continuously discharging and its voltage is about to fall to the under-voltage protection threshold, the inverter does not shut down immediately; instead, it triggers an intelligent predictive mechanism in advance, automatically disconnecting the battery inverter circuit within milliseconds and seamlessly switching to the mains grid to resume power supply. Throughout this process, there is no voltage interruption and the load remains operational.

Under these operating conditions, the system maintains normal load operation via the mains supply, whilst the photovoltaic system and mains supply work in tandem to recharge the battery. Once the battery voltage has recovered to the operational threshold, the inverter automatically switches back to battery-powered inverter mode, disconnecting from the mains grid to maximise the utilisation of the photovoltaic storage energy. The entire switching process is carried out fully automatically by the device’s built-in programme, with a switching speed measured in milliseconds—far below the critical threshold for electrical power failure. The load continues to operate continuously throughout, with no screen blackouts, shutdowns or restarts; this eliminates at source the issues of equipment damage and power interruptions caused by manual switching.

In addition, the new off-grid inverter is equipped with multi-level battery protection and intelligent voltage regulation functions, further optimising the operational logic under low-battery conditions. The unit precisely sets three-tier thresholds—undervoltage warning, undervoltage switchover and over-discharge protection—according to different battery types, such as lithium iron phosphate (LiFePO₄) and lead-acid batteries. When battery levels are low, the system first alerts the user via a load-reduction warning before smoothly switching to mains power as a backup, rather than abruptly cutting off power and shutting down the system. At the same time, the built-in AVR (Automatic Voltage Regulator) module ensures a stable output of 220V standard sine wave voltage, whether due to fluctuations in battery discharge or the connection to the mains, thereby guaranteeing the safe operation of precision electrical appliances and inductive loads.

Video: Comparison of the operating principles of the new generation of smart, fully off-grid inverters versus older off-grid inverters

Compared with the grid-connected anti-backfeed solutions favoured by users, the upgraded fully off-grid, fully automatic switching solution offers significant advantages. Firstly, it is more cost-effective and simpler to install, as there is no need to fit additional anti-backfeed devices or grid-connection monitoring modules; the new unit comes with a built-in fully automatic switching function and is ready to use straight out of the box; Secondly, it offers greater compliance: as a purely off-grid system, it does not connect to the grid or feed electricity into the public grid, thereby completely avoiding the need for grid connection registration, electricity approvals and safety hazards associated with reverse power flow. It is therefore suitable for scenarios where grid connection is unavailable or for remote, self-contained power supply situations; finally, the system offers greater stability, as the off-grid system operates independently and is unaffected by grid voltage fluctuations, power cuts or maintenance, providing a safer, self-contained power supply loop.

Many users’ negative perceptions of off-grid inverters stem entirely from the technical shortcomings of outdated, obsolete equipment, rather than the performance levels of current smart models. At present, mainstream pure off-grid inverters on the market—including 15 kW, 250 kW and 30 kW models operating at both utility frequency and high frequency—have all adopted fully automatic grid-complementary switching technology, thereby completely resolving historical issues such as system shutdowns due to insufficient battery power and the need for manual switching. Without the need to rely on hybrid or grid-connected solutions, simply upgrading to a new smart off-grid inverter enables an uninterrupted and stable power supply, whilst avoiding equipment wear and tear caused by manual operation. This represents the optimal, cost-effective solution for domestic, commercial and small-scale energy storage stations.

In summary, manual switching and equipment damage caused by shutdowns are inherent shortcomings of outdated, obsolete off-grid inverters; they are by no means characteristics of the new generation of smart, pure off-grid inverters. With technological advancements, fully automatic, seamless switching has become a standard feature of pure off-grid inverters, perfectly balancing the utilisation efficiency of photovoltaic storage with power supply stability, and resolving users’ core pain points—eliminating the need to blindly pursue complex grid-connected anti-redundancy or hybrid grid solutions.
