A Comparison of Power-Frequency and High-Frequency Inverter Technologies and a Selection Guide
Foreword
“With the continued development of the markets for photovoltaic energy storage, off-grid power supply and industrial backup power, the range of applications for inverters—as the core equipment for converting direct current to alternating current—is constantly expanding. The mainstream inverters available on the market are divided into two main categories: line-frequency inverters and high-frequency inverters. These two types rely on entirely different transformer solutions and power conversion architectures to achieve inverter output, and exhibit significant differences in terms of electrical characteristics, load compatibility, size and weight, and operational energy consumption. In the early stages of project design, it is common to confuse the applicable boundaries between the two, leading to incorrect equipment selection and resulting in issues such as insufficient load-carrying capacity, frequent equipment protection trips, and a shortened service life.”
📌Principles and Structure
▶Mains-frequency inverter

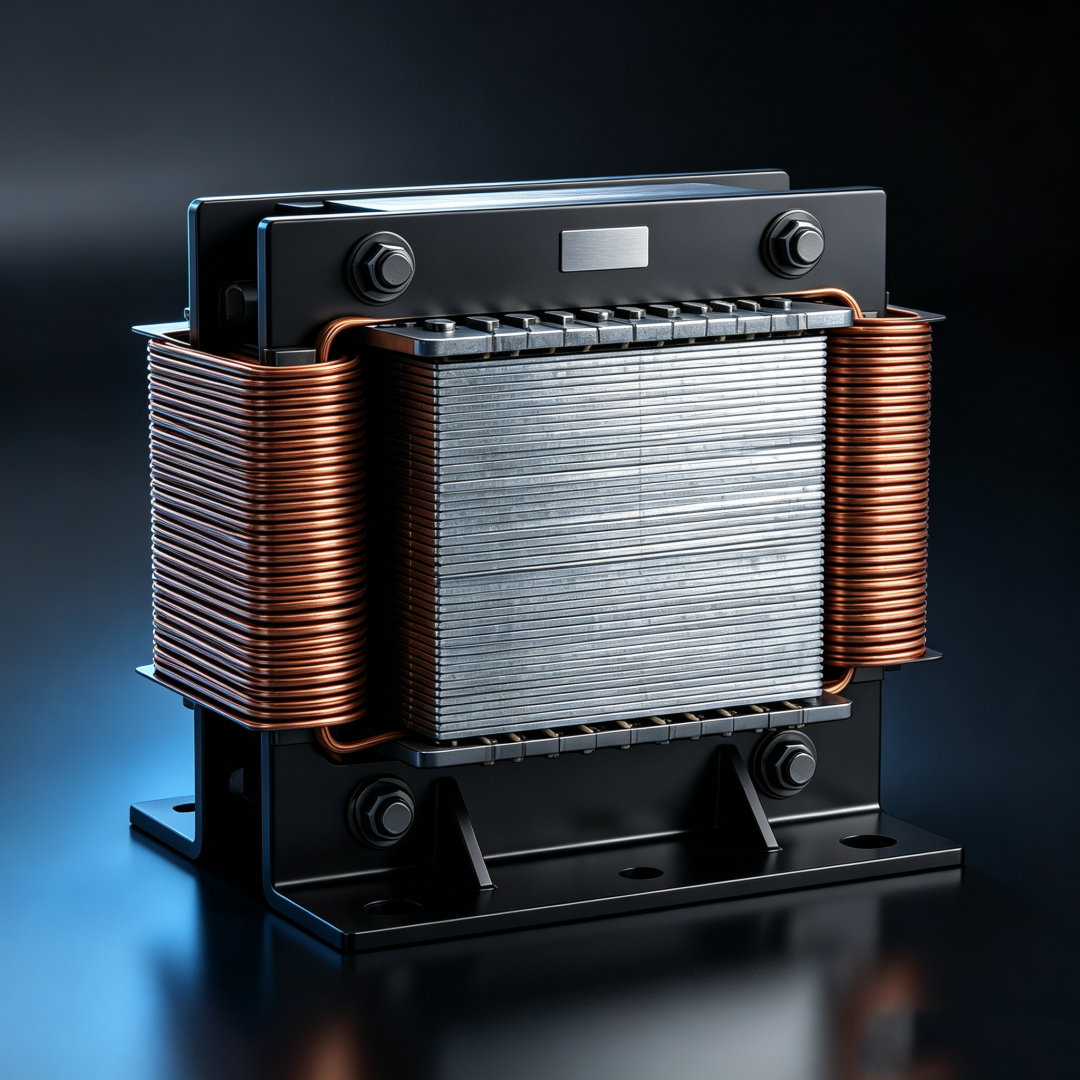

Silicon steel power-frequency transformers rely on a laminated core of thick silicon steel sheets to achieve electromagnetic coupling, utilising a well-established manufacturing process. As the operating frequency is extremely low, the core windings must be of substantial size to achieve sufficient power conversion. The unit inherently possesses electrical isolation; the primary and secondary sides are electrically isolated via the transformer, eliminating the need for additional isolation circuits.
Structural features: The circuit topology is simple, with a small number of components in the main power circuit, resulting in relatively fewer potential points of failure. However, the disadvantages are significant: the transformer is extremely heavy, the unit is bulky, and it requires considerable space for transport and installation.
▶High-frequency inverter

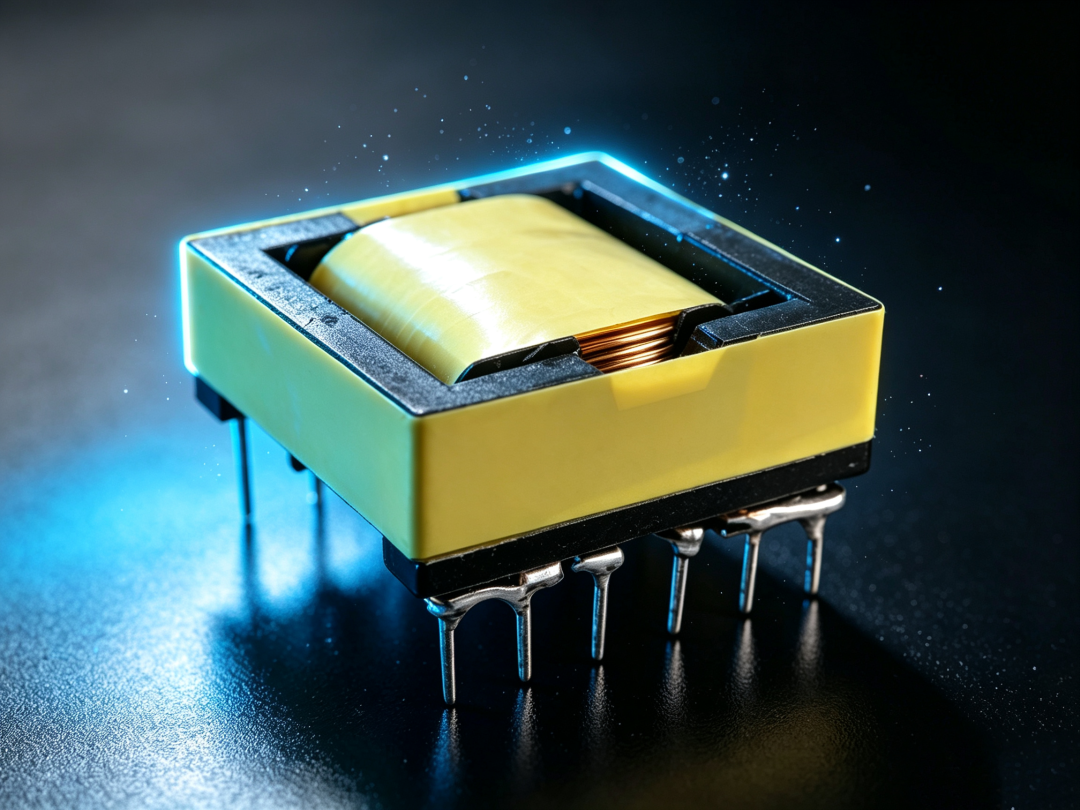

Under high-frequency alternating magnetic fields, ferrite materials exhibit lower magnetic losses; consequently, transformers of the same power rating can be made extremely compact, significantly reducing the overall size of the unit. High-frequency inverters are divided into two categories: isolated and non-isolated. Non-isolated models do not incorporate a transformer, resulting in lower costs but lacking electrical isolation; isolated high-frequency inverters are equipped with a small high-frequency transformer and provide electrical isolation.
Structural characteristics: High degree of integration, with a greater number of control circuits and power switching devices, and longer circuit paths. The advantages are reduced weight and smaller size; the drawbacks are that high-frequency switching devices operate at high temperatures over extended periods and are more susceptible to grid harmonics and transient inrush currents.
⚡Key Performance Differences
| Comparison Item | Low-Frequency Inverter | High-Frequency Inverter |
|---|---|---|
| Size & Weight | Silicon steel transformer is bulky and the unit is heavy; weight is 30%–100% higher at the same power rating | Ferrite transformer is compact and lightweight, saving installation space |
| Conversion Efficiency | Full-load efficiency 80%–90%; light-load efficiency only 50%–70%, with relatively high no-load loss | Stable efficiency of 85%–95% at both full and light loads, low no-load power consumption, suitable for long-term low-load operation |
| Load Tolerance | Excellent resistance to impact, short circuit, and surge; can withstand large inrush currents during motor startup | Sensitive to instantaneous high currents, with strict overload protection thresholds; difficult to continuously drive inductive impact loads |
| Output Waveform Quality | Waveform ripple 1%–5%, strong waveform stability, excellent anti-electromagnetic interference capability | Waveform ripple <1%, higher output waveform purity, low harmonic interference |
| Anti-Interference Performance | Low-frequency architecture offers stronger resistance to surges, lightning strikes, and grid disturbances | High-frequency switching tends to generate electromagnetic radiation, requiring additional filtering circuits to suppress interference |
| Component Lifespan | Fewer main-circuit components, slow transformer aging, longer service life under long-term continuous operation | High-frequency power transistors switch continuously at high speed, accelerating component aging in high-temperature environments |
| Equipment Cost | High consumption of silicon steel raw materials, higher procurement cost at the same power rating | Integrated production with miniaturized components, lower overall procurement cost |
📍Suitable scenarios
▷Applications for Line-Frequency Inverters

Typical applications include: off-grid power supply for remote mining areas, energy storage systems for agricultural irrigation pumps, standby power for small-scale processing plants, power supply for high-power construction machinery, and backup power for outdoor base stations. In such scenarios, equipment must operate continuously around the clock, with power supply stability taking precedence over size and energy consumption.
▷Applications for high-frequency inverters

❗Important note: High-frequency inverters are not recommended for driving high-power inductive loads, such as air conditioners and compressors, on their own. If their use is essential, a soft-start device must be fitted to reduce the inrush current during start-up.
📊Comparison of Long-Term Operating Costs and O&M
High-frequency inverters offer clear efficiency advantages under light loads and are suitable for residential and small data centre scenarios characterised by intermittent daytime power usage and minimal load fluctuations. However, in high-temperature, dusty industrial environments, the densely packed circuit boards of high-frequency inverters are more prone to dust accumulation and face greater thermal management challenges, requiring regular internal dust removal and effective ventilation and cooling. Line-frequency inverters feature a simple design and can withstand harsh operating conditions; they require less maintenance in dusty environments and under extreme temperatures, making them highly suitable for unmanned remote sites.
✅Clarifying Common Misconceptions About Product Selection
× Misconception 1: High-frequency inverters are more efficient, so high-frequency models should be prioritised in all scenarios.
✔ Correction: The efficiency advantage is only evident under resistive light-load conditions. When faced with high-power inductive surge loads, high-frequency inverters may still experience start-up difficulties and frequent protection trips, even if their rated power is sufficient.
× Misconception 2: Line-frequency inverters are always better than high-frequency inverters
✔ Correction: Line-frequency inverters are bulky, expensive to manufacture and have high no-load losses. If used solely to power domestic appliances or servers, selecting a line-frequency inverter would result in a waste of money and space.
× Misconception 3: High-frequency inverters with isolation can completely replace line-frequency inverters
✔ Correction: Isolation is merely a safety feature; it does not imply equivalent surge resistance. Isolated high-frequency inverters remain limited by the current tolerance threshold of high-frequency power devices and cannot match the short-term energy storage and buffering capacity of line-frequency transformers.
📖Summary of the Final Selection
For driving inductive loads such as industrial motors, irrigation pumps and machine tools, as well as for unattended off-grid systems in remote locations that must withstand frequent start-up surge loads, line-frequency inverters are the preferred choice;
For powering precision low-voltage equipment such as servers, computers, televisions and surveillance systems, where compact size and low no-load power consumption are prioritised, as well as for indoor domestic use and energy storage in small server rooms, high-frequency inverters are the preferred choice;
In mixed-load scenarios (involving both motors and precision electronic equipment), a split-system approach may be adopted: high-frequency inverters are used to power low-voltage precision loads, whilst low-frequency inverters are used to power high-power inductive loads separately, thereby avoiding mutual interference between loads.
The selection of the inverter directly determines the reliability of the entire energy storage and power supply system. During the initial design phase, it is necessary to assess load types, inrush current, average daily operating hours, on-site installation space, and ambient temperature and humidity. A comprehensive comparison of low-frequency and high-frequency solutions should be carried out; selection should not be based solely on power parameters, in order to ensure the long-term stable and reliable operation of the system.
