An In-Depth Analysis of a 10KVA Residential Solar System: Suitable for Daily Electricity Consumption of 15–30 kWh, Enabling Energy Self-Sufficiency for Average Households

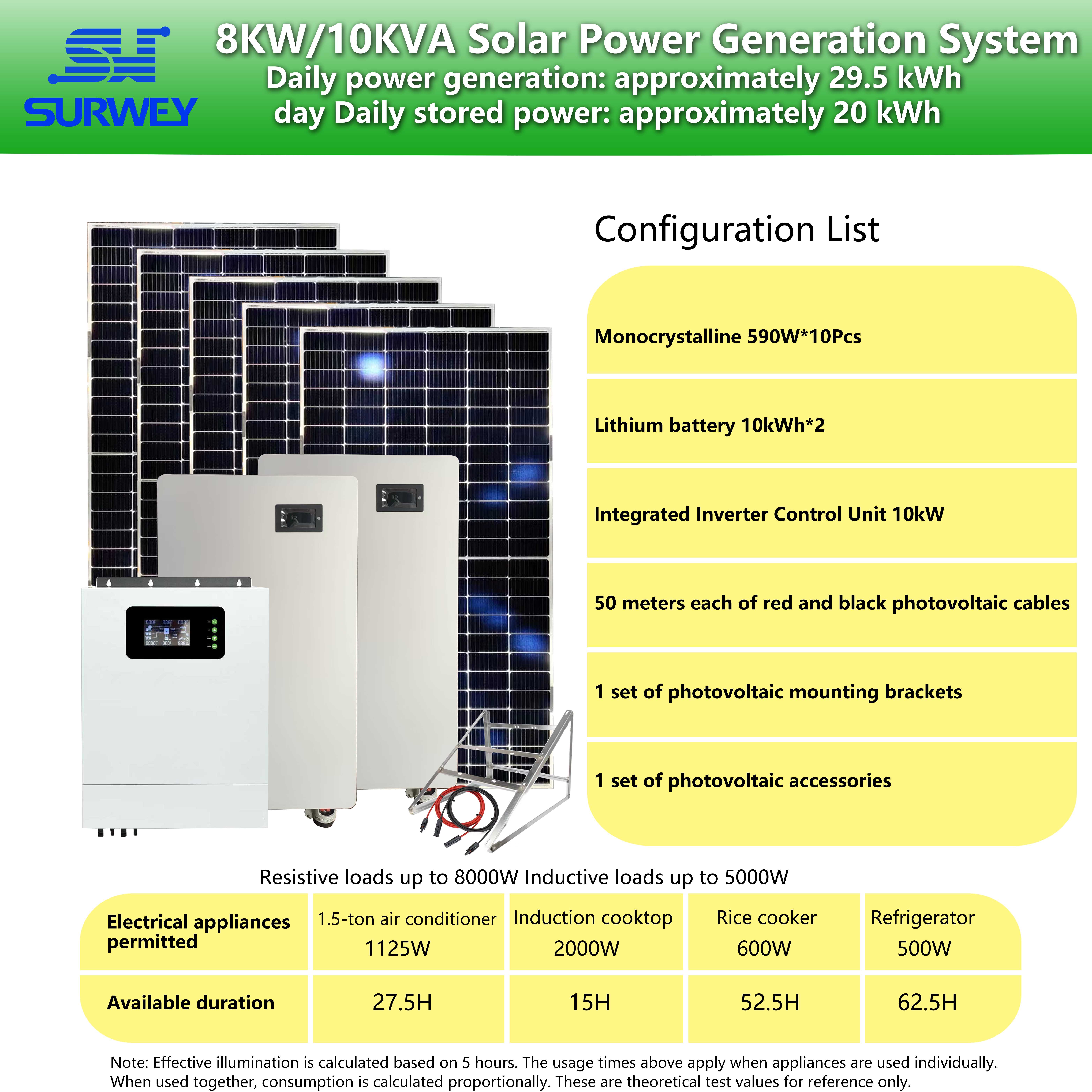

For typical households with daily electricity consumption of 15–30 kWh and a total load power of 8 kW or less, a carefully configured 10 kVA residential solar power system can effectively alleviate daily electricity demands while helping the household achieve energy self-sufficiency. Today, we’ll take a technical look at this combination—comprising “10 590W solar panels + a 10kVA high-frequency inverter + 2 10kWh lithium-ion batteries”—to see how it perfectly suits the power consumption needs of such households.

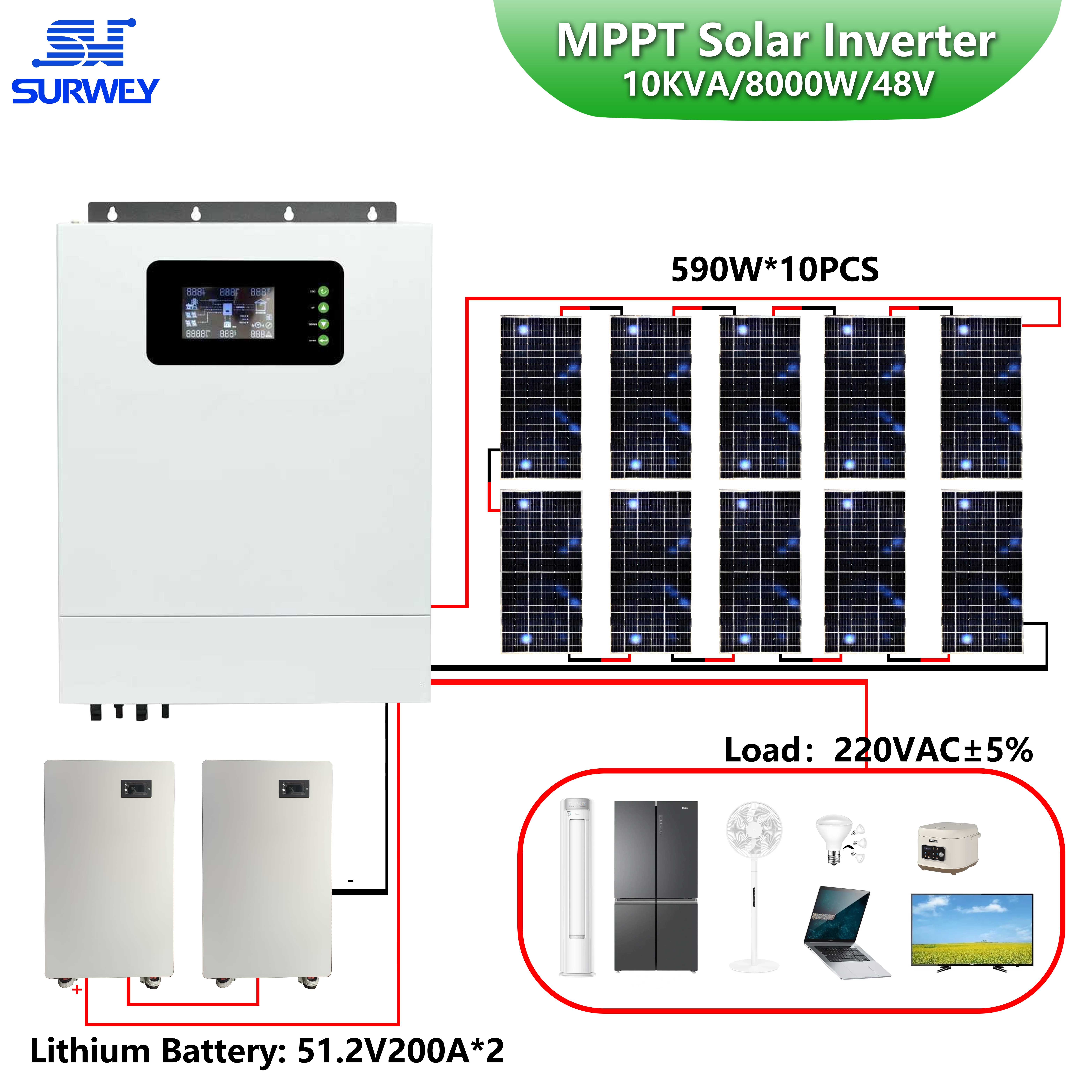

（Animation showing the direction of current flow in a circuit）
I. Core Power Generation Component: Solar Panel Configuration for Efficiently Meeting Electricity Needs
In a complete solar power system, solar panels serve as the core power generation component, and their configuration directly determines whether the generated power can meet household needs. For this project, 10 590W solar panels were selected and arranged in a “5 in series, 2 in parallel” string configuration. Each string has a total power of 5 × 590W = 2,950W. With two strings connected in parallel, the total power of the entire solar panel system is 2,950W × 2 = 5,900W.
Given the local average of 5 hours of sunlight per day, using the formula “Daily power generation = Total PV panel power × Hours of sunlight,” the theoretical daily power generation of this system is 5,900W × 5H = 29,500Wh (29.5 kWh). This figure aligns closely with a household’s daily electricity demand of 15–30 kWh. Even on days with slightly poorer sunlight, it can largely cover electricity consumption, and there will be a small surplus on days with ample sunlight.
From a technical compatibility perspective, the 590W high-power solar panels offer clear advantages. Compared to low-power solar panels, high-power panels can significantly reduce the required roof installation area for the same power output, making them ideal for ordinary households with limited roof space. The “5 in series, 2 in parallel” string configuration simplifies circuit design while ensuring power generation efficiency, reduces line losses, and minimizes the likelihood of malfunctions, further enhancing the system’s stability and reliability.
II. Energy Conversion Hub: 10kVA High-Frequency Inverter, Ensuring Stable and Safe Power Supply
As the “energy conversion hub” of a solar system, the inverter is responsible for converting the direct current (DC) generated by the solar panels into alternating current (AC) usable by household appliances, and its performance directly impacts the user experience. Selecting a 10kVA high-frequency inverter is a critical step in ensuring this system is well-suited for household power consumption.
High-frequency inverters are characterized by their compact size and high conversion efficiency, typically exceeding 95%. This means that the electrical energy generated by the solar panels is utilized to the maximum extent possible, minimizing energy waste. At the same time, it can quickly respond to fluctuations in household power demand. Take the simultaneous operation of common household appliances as an example: a rice cooker (approx. 800W), a washing machine (approx. 500W), a refrigerator (approx. 150W), an air conditioner (approx. 1500W), an induction cooktop (approx. 2000W), and lighting (approx. 200W) all operating simultaneously, the total power consumption is approximately 800 + 500 + 150 + 1500 + 2000 + 200 = 5150W. This is far below the inverter’s rated apparent power of 10 kVA (since the power factor of household loads is typically ≥0.8, a 10KVA unit can support approximately 8kW of active power). The inverter can easily handle this load, stably outputting 220V AC to ensure the normal operation of all appliances.
Additionally, high-frequency inverters offer robust dynamic voltage regulation capabilities. Household appliances such as refrigerators and washing machines are inductive loads that generate voltage surges upon startup. If the voltage is unstable, this can shorten the lifespan of these appliances. The 10KVA high-frequency inverter effectively mitigates this issue by smoothly regulating the voltage, providing a stable power supply to appliances and extending their service life.
III. Energy Storage Core: 2 x 10kWh Lithium-Ion Batteries for Worry-Free 24/7 Power
The two 10kWh lithium-ion batteries (typically 51.2V 200Ah each; 102.4V 200Ah when connected in series) form the core of the energy storage system. They enable the “generate during the day, use all day” concept, freeing households from the dilemma of having electricity only during the day and none at night.
From a technical perspective, the 20kWh energy storage system formed by connecting two 10kWh lithium-ion batteries in series has a voltage of 102.4V, which perfectly matches the input range of a 10kVA high-frequency inverter. The 200Ah capacity corresponds to 20kWh of storage, capable of storing approximately 80% of daily power generation (approximately 29.5 × 80% = 23.6 kWh). This stored energy is sufficient to support a household’s nighttime electricity needs, easily meeting requirements for lighting, continuous refrigerator operation, or low-power air conditioning.
Currently, lithium iron phosphate (LiFePO₄) batteries are the preferred choice for residential solar systems, and this 20 kWh lithium battery is no exception. With a cycle life exceeding 6,000 cycles, it can provide stable operation for over 10 years based on a typical household charging and discharging once per day. Furthermore, its safety performance surpasses that of ternary lithium batteries, eliminating safety hazards such as explosions or fires. This makes it suitable for indoor installation in homes, ensuring peace of mind for household members.
IV. Important Considerations for System Installation: Details Determine Performance
Although this 10 kVA residential solar system is well-suited for household electricity needs, there are two technical points that require special attention during installation and use.
First, the installation angle of the solar panels must be adjusted according to the local latitude. Typically, the installation angle should match or be slightly greater than the local latitude. This ensures that the panels receive maximum sunlight during daylight hours, guaranteeing 5 hours of effective sunlight and thereby achieving the theoretical power generation capacity. An improper installation angle will significantly reduce the panels’ efficiency and impact the system’s overall power supply capability.
Second, load distribution must avoid “instantaneous overloads.” Although a 10 kVA inverter has a high rated apparent power (capable of supporting approximately 8 kW of active power), if multiple high-power appliances are operated simultaneously in a household—such as an induction cooktop (approx. 2,000 W), an air conditioner (approx. 1,500 W), electric water heaters (assumed at 2000W), and rice cookers (approximately 800W), the total power consumption may approach or even exceed 8 kW (the inverter’s maximum active power capacity). In such cases, the inverter’s overload protection feature must be utilized to mitigate risks. Additionally, household members are advised to develop the habit of using high-power appliances at staggered times to prevent system damage caused by momentary overloads.
V. Applicability and Cost-Effectiveness: Who Is This System Best Suited For?
In terms of applicability, this 10KVA residential solar power system is particularly well-suited for three types of households.
The first type consists of typical urban households with a daily electricity consumption of 15–30 kWh and sufficient sunlight on their rooftops or balconies (no significant obstructions, ensuring 5 hours of effective sunlight). These households have moderate electricity needs, and installing this system will generally allow them to achieve self-sufficiency in power generation.
The second category consists of households prioritizing emergency power supply. During unexpected situations such as power outages, the 20kWh lithium-ion battery can support the continuous operation of essential household appliances (such as refrigerators, lighting, and air conditioners running at low power) for 8–12 hours, ensuring that basic household electricity needs remain unaffected.
The third category consists of households seeking to conserve energy, reduce consumption, and lower electricity costs. Long-term use of this solar system can significantly reduce household electricity bills. Based on local electricity rates, it can yield substantial annual savings. Additionally, the system has a long service life, offering excellent overall value for money.
However, for households with daily electricity consumption exceeding 35 kWh or those with severely shaded roofs (less than 3 hours of sunlight per day), we recommend upgrading to a higher-capacity system, such as a 12KVA system, or increasing the number of solar panels to ensure the system can meet the household’s electricity needs.
Overall, this 10KVA residential solar power system precisely meets the electricity needs of typical households with daily consumption of 15–30 kWh and a total load capacity of up to 8 kW through a combination of “high-efficiency power generation, stable conversion, and safe energy storage” technologies. Not only does it provide households with stable, clean electricity, but it also helps reduce electricity costs and achieve energy self-sufficiency, making it an excellent choice for modern household energy upgrades.
