Off-grid PV Energy Storage System for Nigeria Villa
1. System Overview
Working Principle of 5KW Off-Grid PV Energy Storage Integrated Inverter System
This solution develops an off-grid photovoltaic power supply system with industrial frequency integrated inverter as the core, combining high-efficiency photovoltaic array, MPPT charge controller and lithium iron phosphate battery energy storage unit. It is applicable to inductive loads including motors, water pumps, air conditioners, refrigerators, air compressors and welding machines. Inductive loads feature special operating properties. The instantaneous starting power can reach 2 to 3 times the rated power with sharp surge current. High-frequency inverters of the same power level cannot withstand such instant heavy load, which easily causes tripping shutdown and equipment damage.

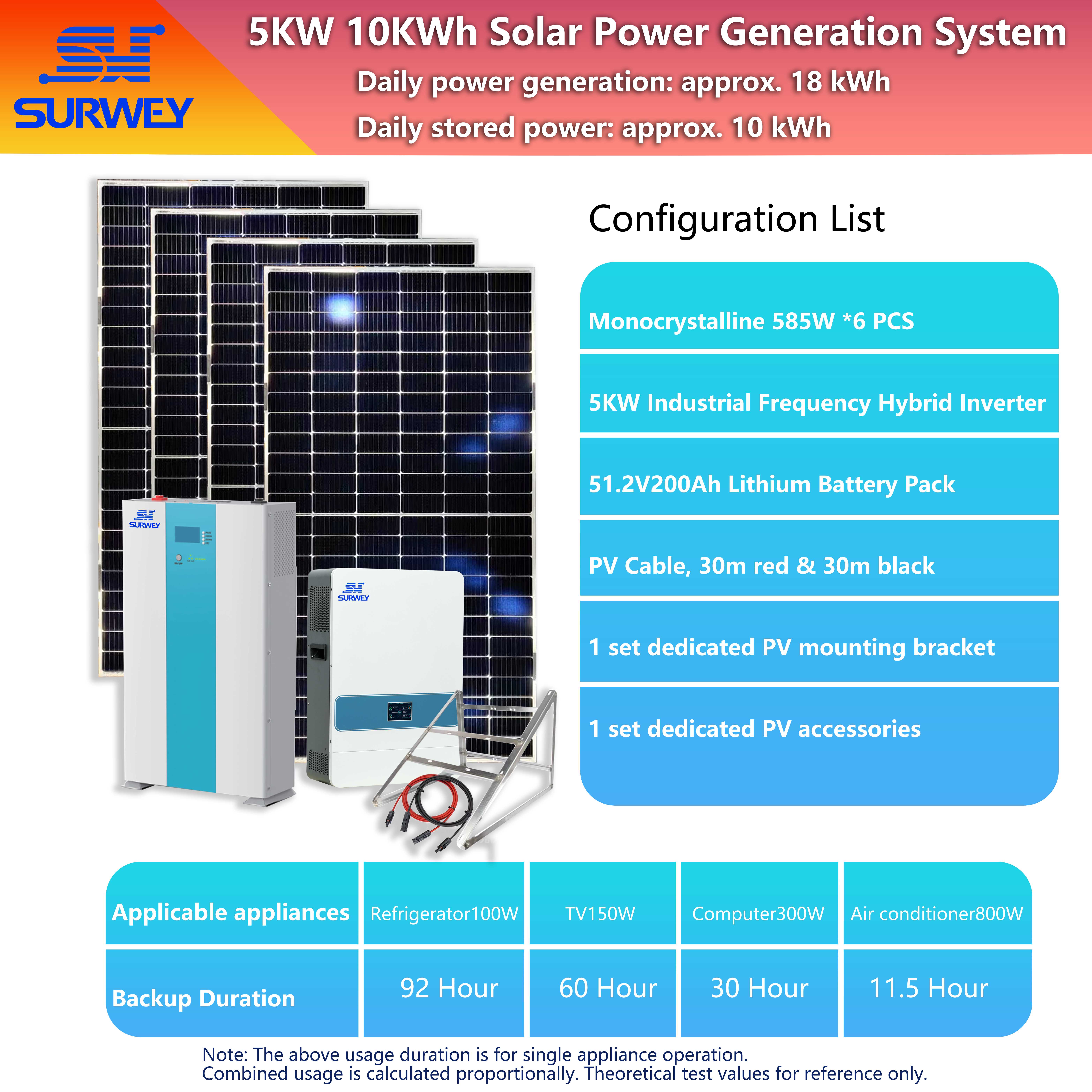

Configuration Diagram of 5KW Industrial Frequency Off-grid PV Energy Storage Integrated Inverter System
The system is equipped with SW-DX-5000 wall-mounted industrial frequency integrated inverter, matched with 6 pieces of 585W PV modules and 51.2V200Ah LiFePO4 battery pack, forming a closed-loop integrated power supply system of power generation, energy storage and inversion. Calculated based on 5 hours of effective daily sunlight, daily power generation reaches 18 kWh with sufficient power supply. It applies to isolated power supply in remote areas, household emergency backup, outdoor construction and small machinery power supply. Boasting strong instantaneous load capacity, it withstands high-power startup impact of inductive loads and steadily outputs standard 220V AC power.

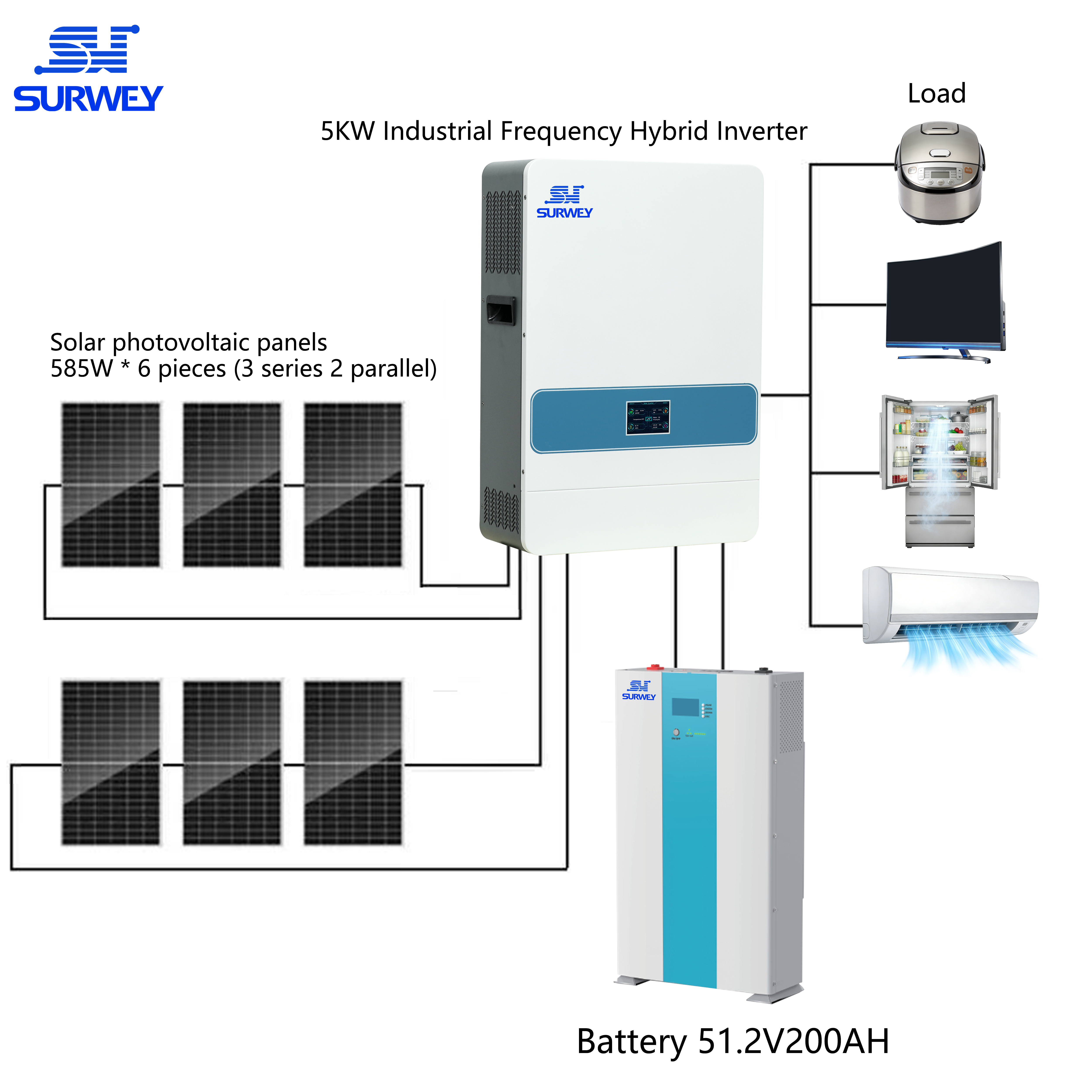

Topology Diagram of 5KW Industrial Frequency Off-grid PV Energy Storage Integrated Inverter System
2. Technical Parameters and Configuration Description of Core Equipment
(1) SW-DX-5000 Industrial Frequency Integrated Inverter & Controller
This unit serves as the core control of the whole system, adopting industrial frequency isolation transformer structure. Compared with high-frequency inverters of the same specification, it has outstanding advantages in handling instantaneous high-power startup of inductive loads. It can steadily bear surge current under instantaneous load 2 to 3 times the rated power without overload protection or shutdown failure.

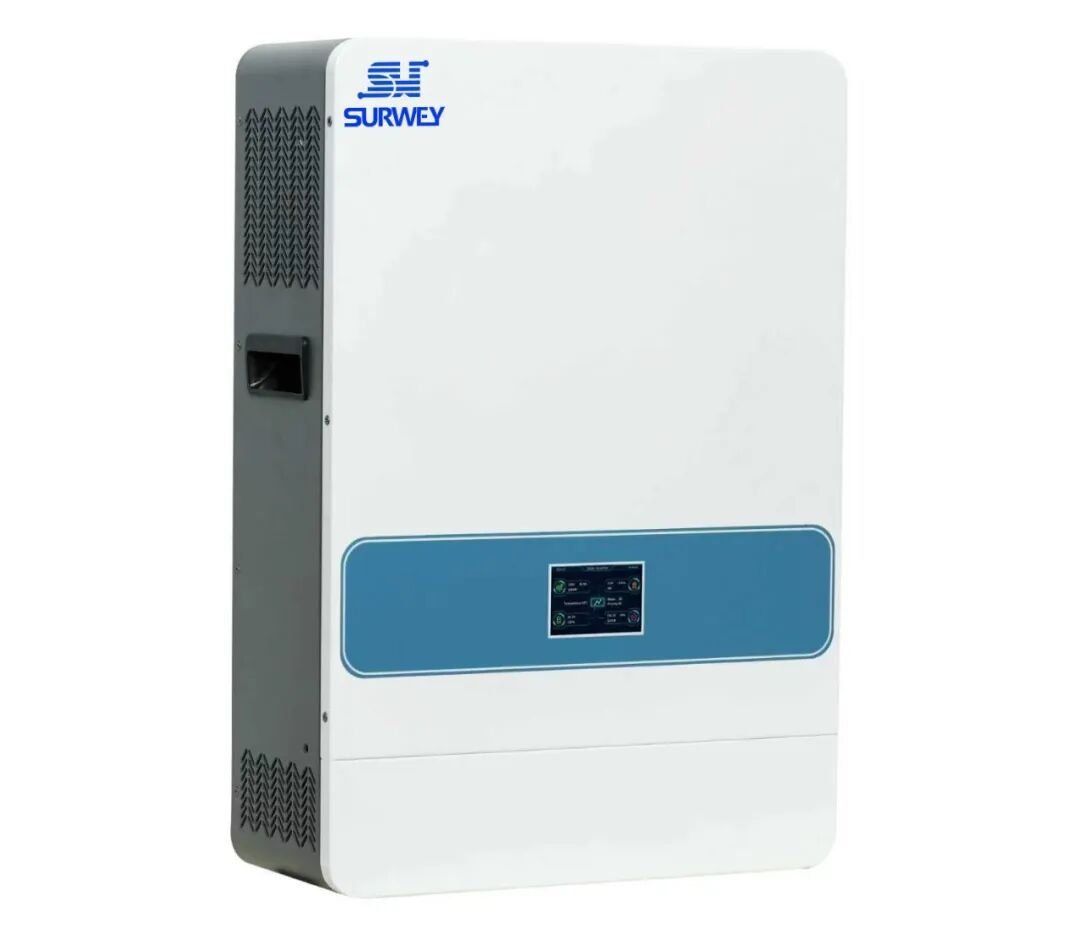

Industrial frequency integrated inverter controller
The rated output power is 5000W with peak power up to 8000W, offering ample power margin to cope with peak startup conditions of various inductive loads. It outputs standard 220V pure sine wave AC power with voltage fluctuation within ±5% and stable 50Hz frequency, consistent with mains power standard. Built-in large-capacity industrial frequency isolation transformer features excellent impact and surge resistance. It supports frequent start-stop operation of air conditioner compressors, refrigerator motors, water pumps, air compressors and welding machines, avoiding startup faults and extending service life of electrical devices.
The PV access voltage ranges from 72V to 150V. The built-in 60A high-power MPPT controller achieves up to 99% maximum power tracking efficiency to fully absorb solar energy. It supports wide mains input voltage of 165-260V with strong compatibility. Multiple protections including overvoltage, undervoltage, overcurrent, short circuit, overtemperature and graded overload monitor circuit status in real time, resist power fluctuation caused by load start and stop, and ensure safe and stable system operation. Wall-mounted design saves space, enables easy installation and adapts to various environments with steady long-term load operation performance.
(2) PV Array Configuration
The system is equipped with 6 pieces of 585W monocrystalline silicon PV modules, with a total installed power of 3510W. Each module has an open-circuit voltage of 51V, operating current of 13.77A. It boasts high photoelectric conversion efficiency and fine low-light power generation performance, generating stable power even on cloudy days and at dawn and dusk. To match the inverter PV access voltage, the array adopts 3-series and 2-parallel connection. The series voltage stays within safe operating range, and the parallel total current fits the 60A MPPT controller perfectly for efficient power storage. Calculated on 5 hours of effective daily sunlight, the daily power generation reaches 18 kWh, meeting regular power demand and supporting instantaneous high power consumption of inductive loads to maintain balanced power supply and demand.
(3) Lithium Iron Phosphate Battery Energy Storage Unit
The energy storage module adopts 51.2V 200Ah lithium iron phosphate battery pack with total capacity of 10.24kWh, serving as the core buffer against instantaneous high power load. It releases heavy current instantly when inductive loads start, compensates power shortage and prevents sharp voltage drop to ensure stable system operation.
Equipped with BMS intelligent management system, it monitors charge-discharge status in real time, with protection against overcharge, overdischarge, overcurrent, short circuit and overheating. It features excellent cell balance and long cycle life. Its rated voltage matches the inverter DC terminal perfectly, enabling safe and steady charging. The stored power responds rapidly to sudden power demands, sustaining long-duration stable power supply and enduring 2-3 times instantaneous startup power for reliable all-day power guarantee.

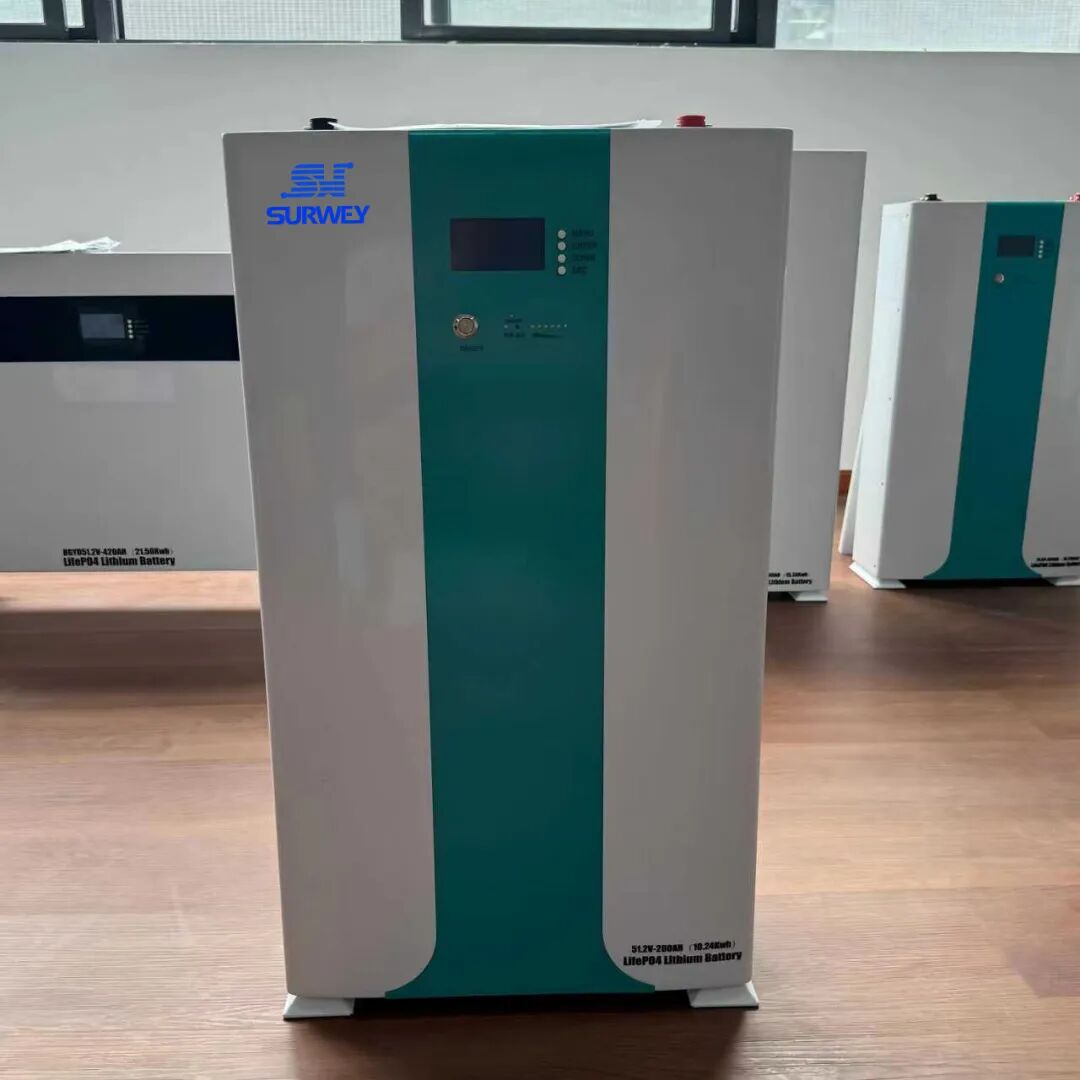

51.2V 200Ah Lithium Iron Phosphate (LiFePO4) Battery Pack
3. System Working Principle and Operation Modes
The system supports three intelligent operation modes: solar priority, mains priority and battery priority, which can be switched freely according to actual power consumption scenarios to adapt to the instantaneous high-power startup characteristics of inductive loads.
In solar priority mode, power generated by photovoltaic modules supplies on-site loads preferentially under sufficient sunlight, and surplus power is automatically stored in the battery pack. When inductive equipment such as water pumps, air conditioners and motors starts up, the power surges to 2-3 times the rated value. The battery discharges immediately to supplement power, and the industrial frequency inverter eliminates impact loads steadily with sufficient peak power margin to guarantee smooth startup and stable operation of devices. The system automatically switches to battery power supply at night to maintain uninterrupted power supply.
Mains priority mode realizes seamless millisecond-level switching between mains and stored power. It instantly shifts to battery supply once mains power fails, avoiding shutdown and restart of inductive loads and reducing equipment wear. Battery priority mode consumes stored power first, suitable for areas with unstable mains power. It copes with instantaneous high-power conditions caused by frequent start and stop of mechanical equipment via high-current output of energy storage batteries.
4. Core Advantages and Technical Highlights of the System
(1) Super Strong Impact Resistance and Load Capacity, Suitable for Inductive Load Conditions
The instantaneous startup power of inductive loads can reach 2 to 3 times the rated value, generating severe impact load. Conventional high-frequency inverters lack sufficient power margin, which easily triggers protective tripping and even damages circuits and electrical equipment. Adopting industrial frequency isolation transformer structure, this system boasts far stronger impact bearing capacity than high-frequency products of equivalent power. Sufficient peak power reserve enables frequent startup and shutdown of motors, air compressors, welding machines and refrigeration devices. Standard pure sine wave output eliminates harmonic interference, reducing motor noise and heat generation and effectively extending equipment service life.
(2) Coordinated Operation of Photovoltaic Power and Energy Storage with Rapid Instant Power Response
The photovoltaic array steadily harvests solar energy for power generation, and the large-capacity lithium battery delivers instantaneous high-current discharge with coordinated operation. When inductive loads consume 2-3 times rated power suddenly, the system rapidly allocates power to fill power shortage without voltage drop or power interruption, maintaining stable constant power output. The daily power generation of 18 kWh fully meets daily and instantaneous high-power demands with solid and reliable power supply capacity.
(3)Intelligent Precise Control and Multiple Protection for Stable Operation
Built-in MPPT maximum power point tracking technology efficiently harnesses solar energy and reduces energy conversion loss. The whole device is equipped with a comprehensive circuit protection system to offer real-time protection against current and power fluctuations generated by start and stop of inductive loads. The industrial frequency electrical isolation structure isolates line surge interference, fully safeguarding the safety of power generation, energy storage and inversion equipment. It features outstanding environmental adaptability and can operate stably in households, wild areas and work sites.
(4) Clean Energy Supply, Economical and Worry-free for Long-term Use
The system generates power relying on clean solar energy with zero emissions and no fuel consumption during operation, greatly reducing long-term electricity costs. The photovoltaic modules, lithium iron phosphate battery and industrial frequency inverter main unit feature ultra-long service life and low failure rate, delivering high overall cost performance. One-time installation enables long-term and stable power supply, balancing practical value as well as energy-saving and environmental protection benefits.
5. Application Scenarios and Value Analysis
This system features robust performance to withstand 2 to 3 times instantaneous startup power, making it widely applicable to various power consumption scenarios with inductive loads. In remote mountainous areas, islands and pastoral areas, the system can drive water pumps and agricultural processing motors to solve power difficulties for residents’ production and daily life. For household use, it ensures normal operation of air conditioners, refrigerators and other household appliances during mains power outages, improving household power supply safety. For outdoor construction sites, it can stably power operating equipment such as air compressors and welding machines, breaking free from mains wiring restrictions and enabling flexible construction.
Primarily powered by self-generated solar energy, the system replaces high-cost fuel power generation and effectively reduces daily electricity expenses. The industrial frequency device perfectly adapts to the start-stop operating conditions of inductive loads, greatly lowering equipment failure risks and subsequent replacement and maintenance costs. The sufficient daily power generation capacity meets both basic lighting and daily household electricity needs and supports instantaneous high-power operation of mechanical equipment, delivering outstanding comprehensive adaptability and practical advantages.

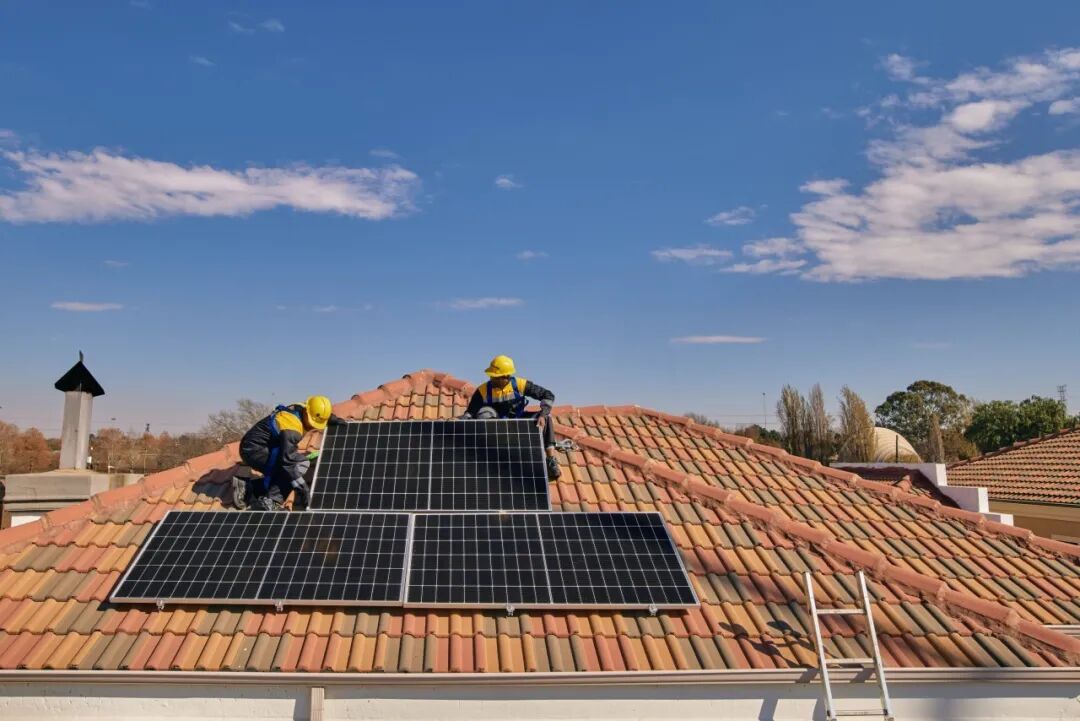

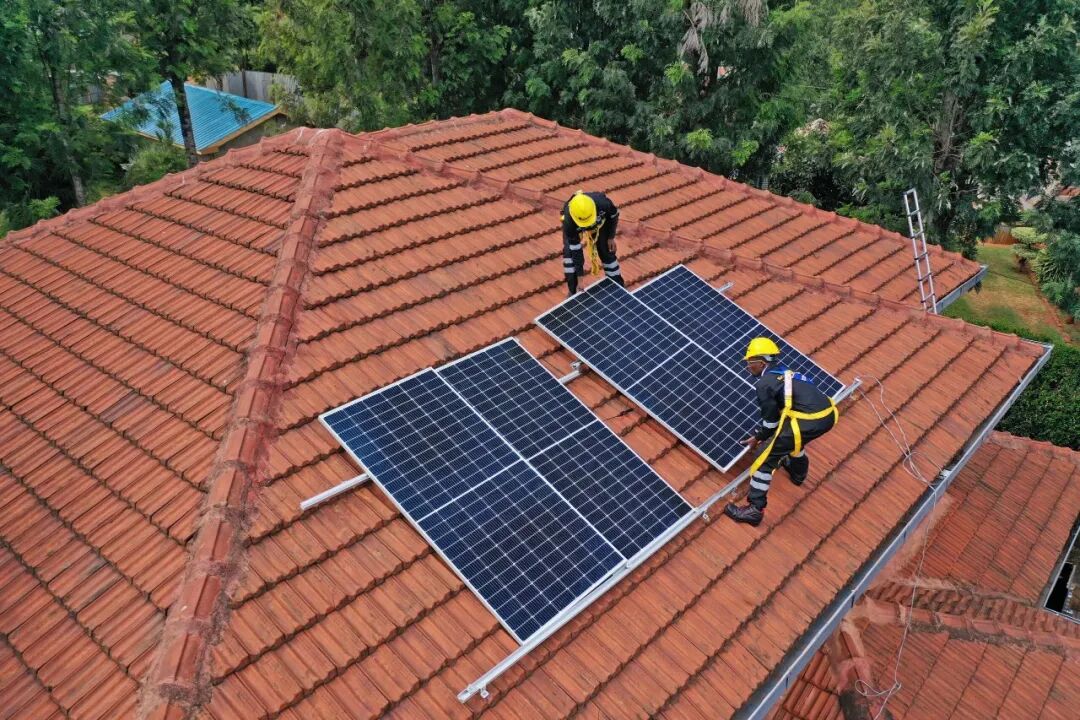

Off-grid Photovoltaic Energy Storage System for Nigerian Villas
6. Conclusion
This 5KW industrial frequency photovoltaic energy storage integrated inverter-controller system perfectly adapts to the operating characteristic of doubled surge startup power of inductive loads. Supported by the excellent impact resistance of industrial frequency inversion devices, it steadily bears 2 to 3 times instantaneous high power load during equipment startup, thoroughly solving the industrial problem that high-frequency inverters cannot stably drive motors, water pumps, air conditioners, electric welding machines and other equipment.
Equipped with high-efficiency photovoltaic arrays and large-capacity lithium iron phosphate energy storage units, the system achieves efficient full-process operation including light energy collection, electric energy storage, instantaneous power supply and stable inverted output. Featuring comprehensive protection system and intelligent operation modes, it suits various complex power consumption scenarios. With strong instantaneous load capacity and comprehensive operating performance, it provides long-term, stable and economical clean energy power supply solutions for sites with all kinds of inductive loads.
