Complete Configuration Plan for a 2kW/2.5kWh Residential PV-Storage System

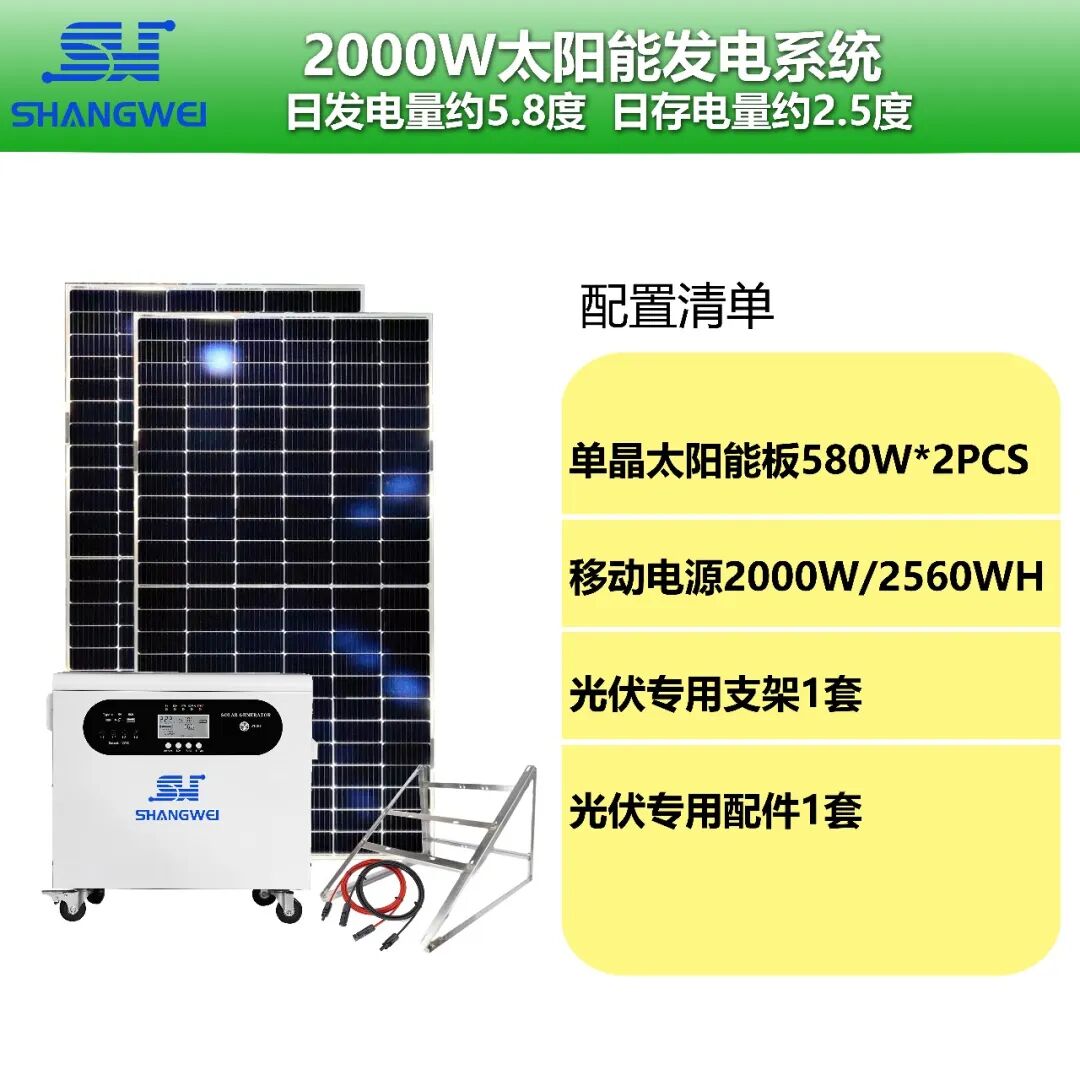

2000W Solar Power System Configuration Diagram
I. Core Product Positioning and Solution Overview
This residential photovoltaic storage system is a small-scale, all-in-one PV-storage unit. Key specifications include a rated continuous output power of 2 kW and a usable storage capacity of 2.5 kWh. Based on actual operating conditions—including two 580-watt photovoltaic modules and an average daily sunlight duration of 5 hours—calculations indicate an average daily power generation of 5.8 kWh and a daily energy storage capacity of 2.5 kWh.
The system is centered around the SW-T2K 2kW all-in-one energy storage unit, which integrates an inverter, MPPT controller, and battery management system (BMS), paired with a 25.6V 100Ah lithium iron phosphate battery pack. It is further equipped with two 580W high-efficiency monocrystalline silicon PV modules, and comes with all necessary accessories as a complete, one-stop solution. The system emphasizes three core benefits: “basic daily power supply, emergency backup during power outages, and modest cost savings.” It ensures a stable power supply for low-power household loads, enables rapid switching to battery power during grid outages, and reduces electricity bills through self-consumption of solar-generated power.

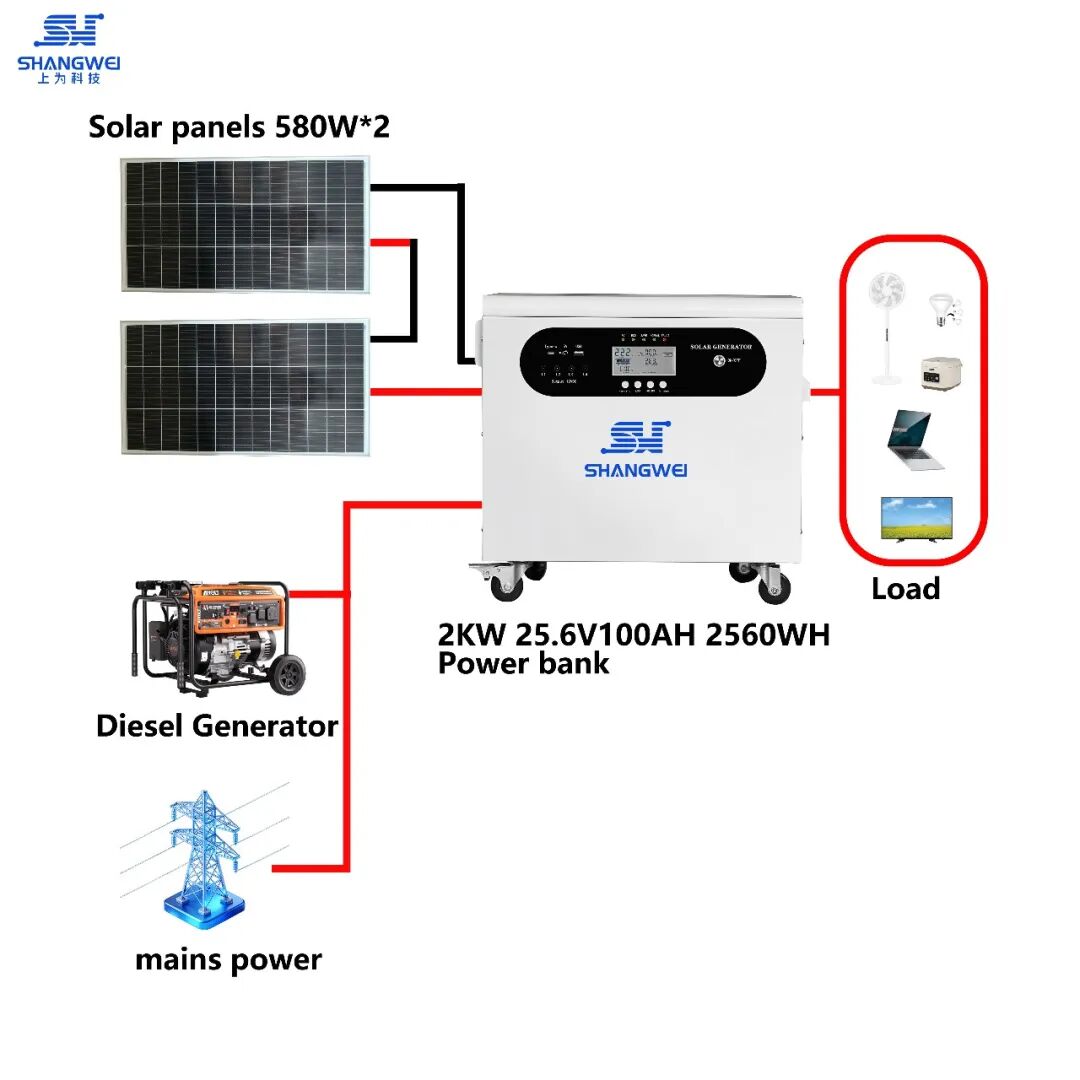

Wiring Diagram for a 2000W Solar Power System
II. Core Hardware Configuration and Technical Specifications
SW-T2K 2kW All-in-One Energy Storage System
The specific hardware configuration of the entire system is as follows:
(1) Core Unit: SW-T2K 2kW All-in-One Energy Storage System
As the system’s “energy hub,” the SW-T2K all-in-one energy storage unit features high integration and comprehensive functionality, serving as the cornerstone for the stable operation of the entire system. Technical specifications are as follows: With a rated output power of 2000W, it can reliably power basic low-power loads such as lighting, refrigerators, routers, phone chargers, and fans. High-power appliances like air conditioners and induction cookers can be used intermittently for short periods but cannot operate at full load for extended periods; It features a built-in high-efficiency MPPT photovoltaic charging module with a maximum photovoltaic input power compatible with two 580W panels. With an MPPT conversion efficiency of up to 99.9%, it maximizes the utilization of solar energy and minimizes power generation losses. The unit is compatible with 25.6V lithium iron phosphate (LiFePO₄) batteries, supports the connection of 100Ah capacity batteries, and incorporates comprehensive charge and discharge control strategies.

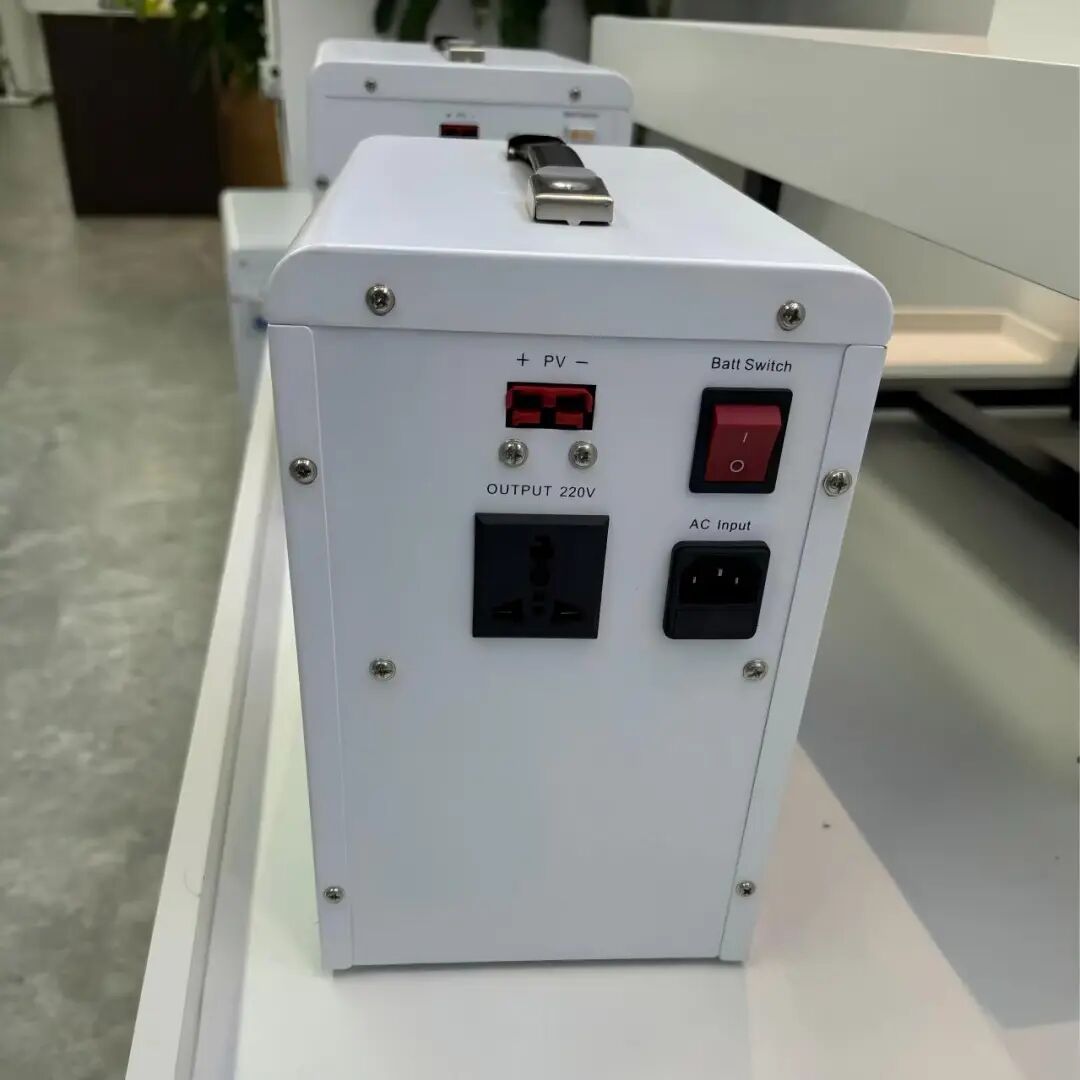

SW-T2K 2kW All-in-One Energy Storage System Panel Interfaces
At the same time, the device supports multiple operating modes, including self-consumption of solar power, battery storage, grid-tied operation, and off-grid emergency power, enabling a “solar power generation—self-consumption—energy storage—nighttime discharge” cycle while adapting to the needs of various scenarios. It outputs pure sine-wave AC power with no harmonic distortion, making it compatible with all household low-voltage appliances and preventing damage to equipment; It features seamless switching within 10 ms; in the event of a grid outage, it can quickly switch to battery power supply mode to ensure uninterrupted power for critical loads, meeting the core requirements of emergency power scenarios during blackouts; It features built-in multiple protections against overvoltage, overcurrent, overtemperature, short circuits, overcharging, and over-discharging. With an IP rating suitable for indoor installation, it operates reliably in a wide temperature range of -10°C to 50°C; Equipped with an LCD display, it shows real-time data on power generation, energy storage, and load consumption, making operation simple and intuitive.
(2) Energy Storage Battery: 25.6V 100Ah lithium iron phosphate battery pack
As the system’s energy storage unit, the energy storage battery directly determines the duration and stability of the system’s backup power supply. The SW-T2K 2kW all-in-one energy storage unit includes a 25.6V 100Ah lithium iron phosphate battery pack with an actual usable storage capacity of approximately 2.5kWh. It efficiently stores surplus electricity generated by photovoltaic panels during the day to meet basic nighttime power needs, thereby supporting the core value of “self-generation for self-consumption and storage of surplus electricity.” The battery is equipped with a built-in intelligent BMS (Battery Management System) that monitors battery voltage, current, and temperature in real time. It features balancing, protection, and monitoring functions to effectively prevent risks such as overcharging, over-discharging, overheating, and short circuits, ensuring safe and stable battery operation and guaranteeing the system’s long-term reliability. The battery has a cycle life of over 8,000 cycles, offering low long-term operating costs and making it suitable for both stationary and portable use at home. Its maximum charging current can adapt to the surplus power generated by photovoltaic panels, enabling efficient and rapid charging while minimizing power wastage. Additionally, its maximum DC load current is sufficient to meet the discharge requirements of basic household loads.
(3) Photovoltaic modules: 2 pieces of 580W high-efficiency monocrystalline silicon modules
This solution includes two 580W high-efficiency monocrystalline silicon photovoltaic modules, which form a photovoltaic array designed to meet the power input requirements of the SW-T2K all-in-one unit. Each module has a peak power output of 580W and utilizes high-efficiency PERC cell technology, offering high conversion efficiency and excellent low-light performance, ensuring stable power generation even under low-light conditions such as cloudy days or early morning/evening;
Based on an average daily effective sunlight duration of 5 hours, each module generates approximately 2.9 kWh of electricity per day. The total daily generation from the two modules can reach 5.8 kWh. During the day, the system prioritizes supplying power to household loads for self-consumption, while surplus electricity is automatically stored in the battery bank, forming a complete cycle of “solar power generation—self-consumption—energy storage—nighttime discharge.” This maximizes the utilization of solar resources and reduces reliance on the utility grid. The module dimensions are designed to fit standard residential balconies and rooftops. Two modules occupy approximately 3.5 square meters of space. Installation is straightforward and requires no major roof modifications. The system supports series connection, is compatible with the operating voltage range of the all-in-one unit, and is safe and reliable.
(4) Supporting Materials
To ensure system stability and safe installation, the solution comes standard with a complete set of installation accessories, including PV-specific mounting brackets, MC4 connectors, PV cables, AC circuit breakers, and other installation materials. This all-in-one package allows for immediate, code-compliant installation upon arrival, eliminating the need for additional purchases.
III. Key Use Cases
With its core configuration of a 2 kW power system and 2.5 kWh energy storage, this 2 kW/2.5 kWh integrated solar-storage system is suitable for a wide range of applications, catering to both fixed residential use and mobile temporary power supply. The core application scenarios are divided into the following five categories:
(1) Daily home use (the most common scenario)
Ideal for easy installation on balconies, small patios, and rooftops, this system primarily powers basic low-power loads such as lighting, refrigerators, routers, mobile phone chargers, and fans. Combined with the SW-T2K all-in-one unit’s 2kW rated power, high-power appliances like air conditioners and induction cookers can be used intermittently for short periods; however, prolonged operation at full load is not recommended. During the day, the photovoltaic panels generate electricity for self-consumption, with excess power stored in the battery. At night, when there is no sunlight, the stored electricity is released to power the system. This not only saves on utility bills but also ensures uninterrupted power supply during outages, enhancing home energy security. It is particularly suitable for low-power households, such as couples or families with elderly members, aligning with the low electricity needs of the target audience mentioned earlier.
(2) Off-grid/low-voltage grid scenarios
Widely applicable in mountainous areas, islands, pastoral regions, remote self-built homes, small guesthouses, and other areas without grid power or where the cost of installing a power grid is prohibitively high; It also meets the needs of unmanned sites such as remote communication base stations, outdoor surveillance systems, hydrological monitoring stations, and border outposts. By leveraging a standalone power supply model combining solar power and energy storage, it provides stable, independent power 24 hours a day, 365 days a year, replacing high-cost, high-pollution diesel generators and solving the electricity challenges in remote areas. This aligns with the needs of communities without grid access mentioned earlier and the system’s off-grid operation capabilities.
(3) Power Outage Emergency Scenarios
For older residential communities, rural areas, regions with lagging power grid upgrades, and areas prone to disasters such as typhoons and heavy rains, the SW-T2K all-in-one unit addresses issues like power rationing, circuit failures, and seasonal outages. Leveraging its seamless switching capability within 10 milliseconds, the system automatically switches to battery power mode the moment the mains power fails, ensuring uninterrupted operation and reliably maintaining critical loads such as refrigerator cooling, whole-house lighting, and network connectivity.
(4) Outdoor/Mobile Scenarios
Thanks to its high level of system integration, compact footprint, and easy installation and removal, this solution is ideal for mobile applications such as RV travel, outdoor camping, backyard activities, and temporary power supply at small construction sites. It offers plug-and-play functionality and flexible relocation, freeing users from the constraints of fixed mains power and effectively meeting temporary outdoor power needs, making it highly practical.
(5) Small apartments/rental units
Ideal for small households with a floor area of 80 square meters or less and an average daily electricity consumption of 5 kWh or less, as well as renters. Thanks to the system’s design, which requires no major wall modifications and offers easy installation, it can be mounted on a balcony wall or placed on the floor. No complicated wiring is needed—simply plug it into an outlet to start using it. When moving, the entire unit can be disassembled and taken with you, making it budget-friendly, flexible, and convenient.
IV. Target Audience and Family Circumstances
Based on the system’s core configuration, performance advantages, and suitable use cases, the following types of households and user groups are best suited for this solution and will benefit the most from it:
1. Households with low electricity demand: Average daily electricity consumption of 3–5 kWh, primarily consisting of two-person households and households with elderly residents. These households rarely use central air conditioning, electric water heaters, high-power induction cooktops, or similar appliances for extended periods, making them well-suited for the load capacity of this 2kW low-power photovoltaic-storage system without wasting excess power.
2. Households in areas with frequent power outages or poor grid quality: Experiencing power outages ≥1 time per week, with each outage lasting ≥2 hours. Older residential complexes, rural self-built homes, and urban villages commonly suffer from unstable voltage and frequent circuit breaker trips. Installing this system can completely resolve power outage issues and ensure the normal operation of critical loads.
3. Households with high electricity rates or looking to save money: For residential electricity rates of ≥0.6 yuan/kWh, especially where the local peak-to-off-peak rate differential is significant, using solar power for self-consumption during the day and discharging stored energy at night to replace peak-hour grid power can directly reduce daily electricity bills by 30%–50%, offering significant long-term cost-saving benefits.
4. Those without grid access or living in self-built homes: In remote rural areas, mountainous regions, and islands, where the cost of connecting to the grid is prohibitively high, but where rooftops or balconies are available for PV installation, this system is ideal for building an independent microgrid. This enables self-sufficiency in power generation and eliminates reliance on the utility grid.
5. Renters and those seeking lightweight solutions: Ideal for those who prefer to avoid electrical rewiring, seek hassle-free, wire-free installation, and value equipment flexibility. The system can be wall-mounted or placed on the floor, allowing for easy disassembly, relocation, and adaptation to the flexible needs of renters, thereby avoiding waste caused by installation modifications.
V. Popular Application Areas at Home and Abroad
Thanks to its high adaptability and cost-effectiveness, this 2kW/2.5kWh solar-storage integrated system has been widely adopted in many regions both domestically and internationally, with the highest demand observed in the following areas:
(1) Popular Domestic Destinations
-
1. Southern China (Guangdong, Guangxi, Fujian): This region experiences high temperatures and high electricity prices, frequent power outages during typhoon season, and abundant sunlight. It offers excellent conditions for installing solar panels on balconies and rooftops, and there is strong demand for both daily household use and emergency backup power, making it one of the most prominent application regions in the country.
2. East China (Shanghai, Zhejiang, Jiangsu): Residential electricity rates are relatively high, with a significant difference between peak and off-peak rates. The region has a high concentration of self-built homes and small households, and there is strong demand among users for self-generation and self-consumption to save on electricity costs.
3. Western Region (Yunnan, Guizhou, Sichuan, Tibet, Qinghai): This region features extensive mountainous and pastoral areas with weak grid coverage; some areas lack grid access. With excellent sunlight conditions, off-grid solar-storage integrated systems have become a necessity.
4. Northern Region (Shandong, Hebei, Henan): This region has a large number of rural self-built homes, moderate residential electricity rates, and occasional power outages. Users here place greater emphasis on cost-effectiveness.
(2) Popular Destinations Abroad (Ranked by Popularity)
Solar-powered water pumps in India
-
1. Africa (Nigeria, Kenya, South Africa): Grid infrastructure in this region is weak, with power grids in some countries having collapsed. Average daily power supply is only 5–6 hours, and diesel-powered generation is costly. However, the region has abundant sunlight, making this system an essential alternative solution for household electricity.
2. Europe (Germany, Italy, Spain, UK): Residential electricity rates are extremely high (0.8–1.2 euros/kWh). The government offers subsidies for photovoltaic storage, and residents have strong environmental awareness, leading to significant policy support for balcony-mounted photovoltaic-storage integrated systems.
3. Australia: Electricity prices are high, sunlight conditions are excellent, grid stability is insufficient, and detached houses are prevalent. Users have a dual need for self-generation and self-consumption to save money, as well as for emergency backup power.
4. Southeast Asia (Indonesia, Philippines, Thailand): These are mostly archipelagic nations with poor grid coverage and abundant sunlight. In recent years, the middle class has grown, household electricity demand has increased, and demand for integrated PV-storage systems has gradually risen.
5. Middle East (Saudi Arabia, UAE): Extremely strong sunlight, insufficient grid stability, high household income levels, and a prevalence of detached homes; the market focuses on high-end emergency backup and energy-saving needs.
6. Japan: Frequent earthquakes create a strong demand for emergency backup power; combined with high residential electricity prices and small rooftop areas, compact PV-storage systems are well-suited to local installation and usage requirements.
VI. Installation, Maintenance, and Cost-Benefit Analysis
(1) Installation Plan
The system is easy to install and requires no complex modifications. The specific steps are as follows: Install the photovoltaic modules on the roof or a balcony in an unobstructed area to ensure ample sunlight throughout the day; Install the SW-T2K all-in-one unit indoors in a well-ventilated, dry location near the utility power connection point and load center, allowing sufficient space for heat dissipation; lay and connect the accompanying auxiliary materials in accordance with electrical safety standards, and complete the installation of grounding and lightning protection equipment; finally, perform system commissioning, configure parameters such as operating modes and time-of-use strategies, and ensure the system operates normally. The entire installation process is standardized and straightforward, and can be completed by a professional in 1–2 days.
(2) Maintenance Plan
Daily maintenance is simple and hassle-free: Regularly clean dust and debris from the surface of the solar panels to maintain light transmission; check that cable connections are secure and free of signs of aging or damage; monitor system performance data on the all-in-one display, paying close attention to parameters such as battery charge level and power generation to ensure they are within normal ranges. Conduct a comprehensive inspection once every quarter and have the system inspected by professionals once a year to promptly identify and address potential issues, ensuring the system’s long-term stable operation.
(3) Cost-Benefit Analysis
In terms of economic benefits, based on a residential electricity rate of 0.56 yuan/kWh and a peak-to-off-peak rate differential of 0.3 yuan/kWh, the system generates an average of 5.8 kWh per day. Of this, 3.3 kWh is used directly to power household loads, while 2.5 kWh is stored in the battery for nighttime use. With an annual generation of approximately 2,100 kWh, the system can replace about 1,800 kWh of grid electricity, resulting in annual electricity cost savings of approximately 1,008 yuan; By leveraging peak-off-peak arbitrage, an additional 200–300 yuan in electricity costs can be saved annually, bringing the total annual savings to 1,200–1,300 yuan. Additionally, the system’s key components have a long service life: photovoltaic modules come with a 25-year warranty, while the integrated energy storage unit and batteries are covered by a warranty of at least five years. The long-term operating costs are significantly lower than those of a system that relies solely on the utility grid. As electricity prices rise, the economic benefits will become even more pronounced.
