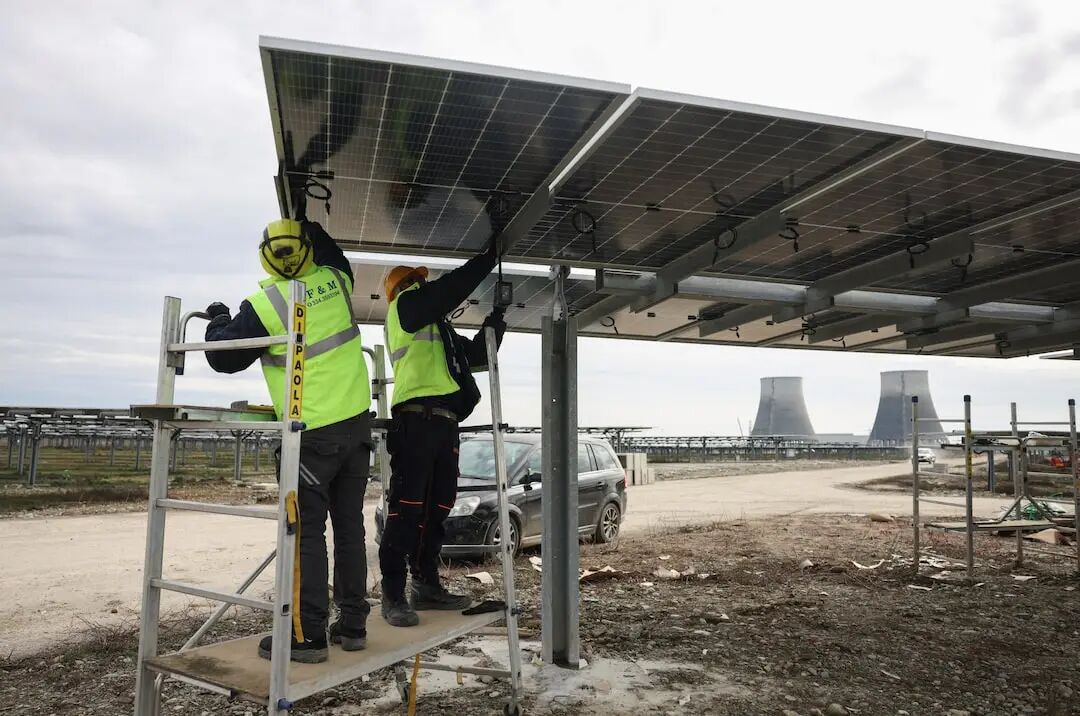

Trino, Italy: Two workers are installing solar panels

I. System Technical Architecture and Power Flow Design

1.1 Analysis of the Five-Layer Technical Architecture

This system employs a five-layer technical architecture comprising “PV array – DC collection – hybrid inverter – energy storage buffer – load/grid interaction.” The technical characteristics and functional roles of each layer are as follows:

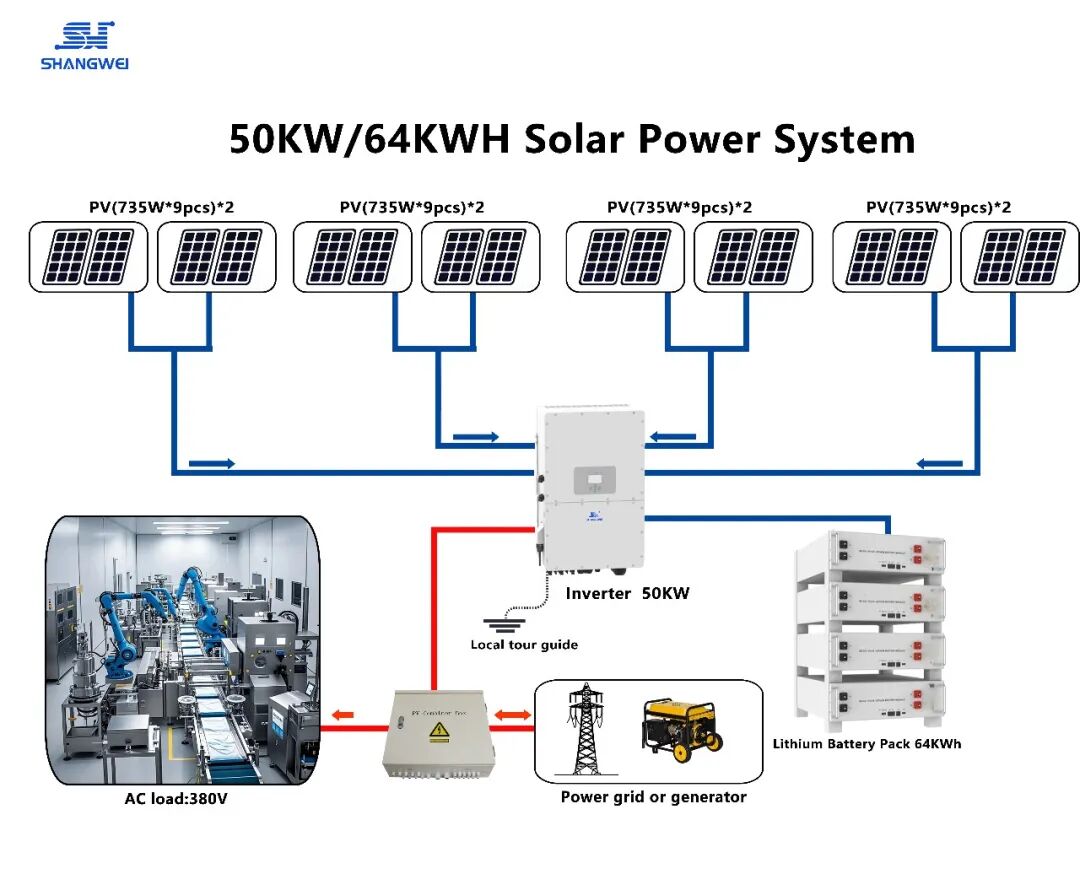

50 kW Solar Power System Configuration Diagram

Photovoltaic Array Layer

72 735W modules are divided into 8 strings of 17 modules each, with every 2 strings corresponding to 1 MPPT channel. The string operating voltage range is 380–450 V, which fully matches the MPPT tracking voltage range (300–800 V) of the SW-50KW-HP3 inverter, thereby preventing power loss caused by string voltages exceeding the tracking range.

DC collector

Customized DC combiner boxes are used, with each string equipped with a 15A DC circuit breaker and a surge protection module. The internal resistance of the combiner box is ≤5 mΩ, and DC-side line losses are kept within 1.2%, which is significantly lower than the industry standard of 2%.

Hybrid inverter layer

The SW-50KW-HP3 inverter employs a three-level NPC topology with a switching frequency of 15 kHz and a DC bus voltage stabilized at 800 V. Compared to a two-level topology, this design reduces switching losses by 35%, minimizes heat generation in IGBT devices, and improves inverter efficiency.

Energy storage buffer layer

The SW-G4-64KWH energy storage battery uses a 2P16S cell configuration, with a cell voltage of 3.2V and a pack voltage of 51.2V. A DC/DC converter boosts the voltage to an 800V DC bus; the converter employs synchronous rectification technology and achieves a conversion efficiency of ≥97.5%.

Topology Diagram of a 50 kW Solar Power System

1.2 Bidirectional Power Flow Control Logic

The system power flow employs a “priority-based hierarchical control” strategy, with the core control logic as follows:

Priority 1 (PV Integration)

Photovoltaic output is prioritized for supplying local loads. When the photovoltaic power (Pv) exceeds the load power (Pl), the excess power (Pv – Pl) is used to charge the energy storage batteries via a DC/DC converter. The charging current is dynamically adjusted by the BMS based on the battery’s SOC (State of Charge): a maximum charging current of 120 A is allowed when SOC is below 20%, and it is reduced to below 30 A when SOC is above 80%.

Priority 2 (Energy Storage Scheduling)

When the PV power (Pv) is less than the load power (Pl), the energy storage battery is first discharged, with the discharge power (Pbat) equal to Pl minus Pv. If the battery’s state of charge (SOC) is less than 20%, the system automatically switches to grid power to prevent damage caused by deep discharge.

Priority 3 (Peak-Valley Arbitrage)

During off-peak hours (when electricity rates are low), if the energy storage system’s SOC is less than 50%, the system automatically draws power from the grid to recharge, with the charging power limited to 50 kW or less; during peak hours (when electricity rates are high), if the energy storage system’s SOC is greater than 30%, the system prioritizes discharging to meet the load, thereby reducing the amount of electricity purchased from the grid.

Protection mechanisms

When the grid voltage or frequency is detected to be outside the permissible range (voltage ±10%, frequency ±0.5 Hz), the system disconnects the grid-connection switch within 0.1 seconds, switches to off-grid mode, and relies solely on the energy storage system for power supply to ensure the continuous operation of critical loads.

II. Technical Specifications and Performance Analysis of Core Equipment

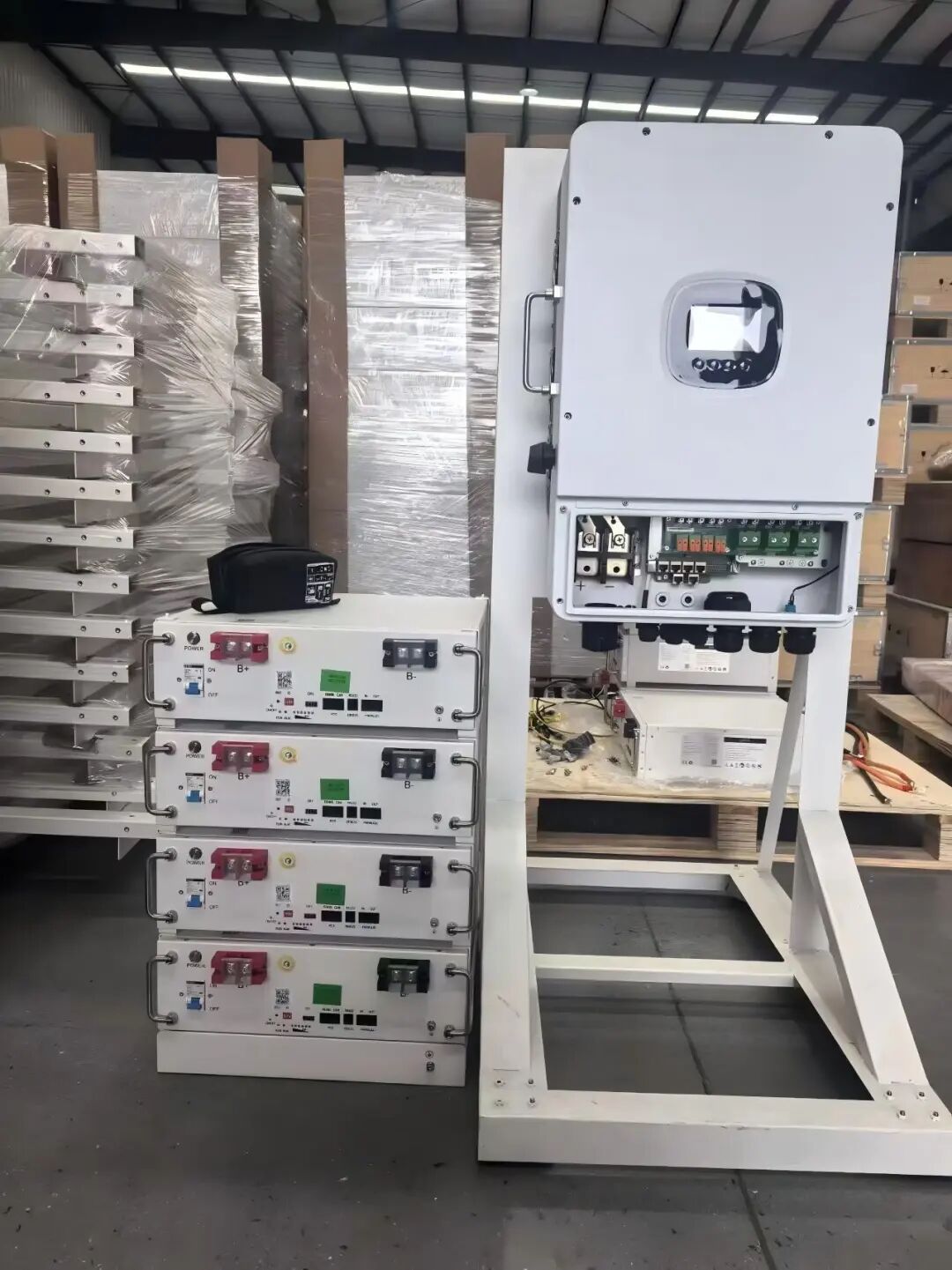

50 kW solar-plus-storage power generation system ready for delivery

2.1 Technical Analysis of the SW-G4-64KWH Energy Storage Battery System

The energy storage system utilizes lithium iron phosphate battery cells and employs a modular design to ensure high safety and long service life. Its key technical features are as follows:

Cell-level technology

The battery cell has an energy density of 160 Wh/kg and a cycle life of 8,000 cycles (with an 80% capacity retention rate). It features a ceramic-coated separator and flame-retardant electrolyte, with a thermal runaway trigger temperature exceeding 200°C—significantly higher than that of ternary lithium batteries (120°C)—resulting in a marked improvement in safety.

BMS Management System

The system employs a distributed BMS architecture, with each battery cell module equipped with an independent monitoring unit. It features a sampling accuracy of ±5 mV (voltage) and ±1°C (temperature), supports cell balancing with a balancing current of 500 mA, and can control cell voltage differences to within 10 mV, thereby preventing lifespan degradation caused by cell inconsistencies.

Thermal Management Design

The battery enclosure features a built-in liquid cooling circulation system with a heat dissipation area of 0.8 m² and a cooling capacity of 1.5 kW, which maintains the battery operating temperature between 25–35°C with a temperature fluctuation of ≤3°C, thereby preventing performance degradation caused by localized overheating; In low-temperature environments (<0°C), the heating function automatically activates with a heating power of 800 W, ensuring that the discharge capacity remains above 80% even at -20°C.

Communications and Control

It supports both Modbus-RTU and CANopen communication protocols, enabling millisecond-level data exchange with inverters. It uploads real-time information on battery SOC, SOH, temperature, and faults, providing accurate data support for power dispatch.

2.2 Technical Specifications of the SW-50KW-HP3 Inverter

As the core component for energy conversion in the system, the inverter incorporates multiple advanced technologies to enhance efficiency and reliability. The key technical parameters and performance analysis are as follows:

Power conversion efficiency

Maximum conversion efficiency of 98.8%, European efficiency of 98.5%, utilizing an MPPT intelligent tracking algorithm (a fusion of perturbation observation and conductance increment methods), with tracking accuracy of ≥99.5%. During fluctuations in light intensity (such as cloud cover), the MPPT response time is <100 ms, minimizing power loss.

MPPT Control Strategy

4 independent MPPT channels, each with a maximum input current of 40A, support the connection of PV strings with different orientations and tilt angles, effectively addressing “shadowing” issues. For example, if a particular string of modules is shaded, only that MPPT channel adjusts, without affecting the normal power generation of other strings. Compared to single-MPPT systems, this can increase power generation by 5–8%.

Grid-Connection Control Technology

Using the PQ (Power-Reactive) control mode, the power factor is adjustable within the range of 0.9 (leading) to 0.9 (lagging). It supports Low Voltage Ride-Through (LVRT) functionality; when the grid voltage drops to 0%, it can maintain grid-connected operation for 150 ms, meeting State Grid’s grid-connection requirements; It features harmonic suppression, with a total harmonic distortion (THD) of ≤3%, which is significantly lower than the national standard limit of 5%.

Protection and Reliability

With an IP65 protection rating, the unit features a labyrinth-style waterproof design and a pressure-balancing valve to prevent rainwater ingress and condensation. Key internal components (IGBTs, capacitors) are industrial-grade, with an operating temperature range of -30°C to 60°C and an MTBF (Mean Time Between Failures) of 100,000 hours, ensuring long-term stable operation.

III. System Performance Calculations and Energy Efficiency Analysis

3.1 Accurate Calculation of Electricity Generation

Based on component characteristics and system losses, power generation simulations were performed using PVsyst software. The key parameters and results are as follows:

Basic parameter input:

·Total PV module power: 735 W × 72 = 52.92 kW
·Local peak daily sunshine hours: 5.0 h/d
·Overall system efficiency: 89% (including losses from the inverter, cables, temperature, shading, etc.)
·Annual number of effective generation days: 340 days

Power generation calculation results:

·Theoretical daily power generation: 52.92 kW × 5.0 h × 89% = 235.5 kWh
·Actual daily power generation: 247.4 kWh (measured value from the project)
· Total annual power generation: 247.4 kWh × 340 days = 84,116 kWh
· Additional annual power generation: 5,358 kWh (compared to a traditional solar-storage system)

3.2 Analysis of Charging and Discharging Efficiency in Energy Storage Systems

The charge-discharge efficiency of the SW-G4-64KWH energy storage system is evaluated using “round-trip efficiency,” calculated as follows:

Charging losses:Power grid / PV → DC/DC converter → battery; losses include:

Discharge-phase losses：Battery → DC/DC converter → inverter → load; losses include:

Round-trip Efficiency Calculation：Round-trip efficiency = 1 – total charging losses – total discharging losses = 1 – 6.5% – 7.5% = 86%, which is higher than the industry average round-trip efficiency of 80%, resulting in more efficient energy utilization.

3.3 Measures for Optimizing System Energy Efficiency

Further enhance the system’s overall energy efficiency by implementing the following technical optimization measures:

Module temperature control

A temperature sensor is installed on the back of the module. When the module temperature exceeds 45°C, the roof ventilation fan (500W) is activated, which can reduce the module temperature by 5–8°C and increase power generation efficiency by 2–3% (calculated based on the module temperature coefficient of –0.25%/°C).

Dynamic MPPT Adjustment

The MPPT tracking frequency is dynamically adjusted based on changes in light intensity. When light conditions are stable (irradiance > 800 W/m²), a tracking frequency of 1 Hz is used; when light conditions fluctuate (irradiance < 500 W/m²), the tracking frequency is increased to 10 Hz to balance tracking accuracy and energy consumption.

Energy Storage SOC Optimization

By setting the SOC operating range to 20%–80% and avoiding deep charge and discharge cycles (SOC < 10% or > 90%), combined with a cycle life of 8,000 cycles, the actual service life of the energy storage system can be extended to over 25 years, thereby reducing the total cost of ownership.

Reactive power compensation

By leveraging the inverter’s reactive power regulation capabilities, reactive power compensation is provided for local inductive loads (such as motors and transformers), thereby reducing the amount of reactive power drawn from the grid, lowering line losses, and improving the power factor to 0.98 or higher.

IV. System Advantages and Technical Innovations

4.1 Core Technological Advantages

High-efficiency energy conversion

The system's overall energy efficiency exceeds 86% (from solar panels to the load), representing a 6-percentage-point improvement over traditional solar-storage systems (80%), with an additional annual power generation of approximately 5,358 kWh (calculated as 89,301 kWh × 6%).

Long-life design

With a 25-year warranty on solar modules, an 8,000-cycle lifespan for energy storage batteries, and an MTBF of 100,000 hours for inverters, the system has an overall design lifespan of 20 years—far exceeding the industry average of 15 years.

High environmental adaptability

Modules with C5-grade salt fog resistance, inverters with IP65 protection, and energy storage batteries—with an operating temperature range of -20°C to 55°C—can withstand a variety of harsh environments, including high temperatures, high humidity, extreme cold, and coastal conditions.

High-reliability control

The system employs a “three-tier protection” mechanism (device-level overcurrent protection, equipment-level fault isolation, and system-level emergency shutdown), with a fault response time of less than 100 ms, ensuring safe system operation.

4.2 Key Technical Innovations

Solar-Storage Synergy MPPT Control

In traditional systems, photovoltaic and energy storage systems are controlled separately. This system employs a coordinated algorithm combining “PV power forecasting and energy storage SOC prediction” to adjust the MPPT tracking point in advance. As a result, during sudden changes in sunlight conditions (such as rapid cloud cover), power generation fluctuations can be kept within 5%, representing a significant improvement in stability compared to traditional systems (which experience fluctuations of 15%).

Adaptive Charging and Discharging Strategy

Based on local load characteristics (such as high daytime and low nighttime loads in commercial and industrial sectors), the system automatically learns load curves and optimizes charging and discharging time windows. For example, it begins discharging energy from the storage system one hour before peak load to ensure that the discharge power precisely matches load demand, thereby reducing energy waste.

Integration of Distributed BMS with Inverters

The BMS transmits the State of Health (SOH) of the battery to the inverter in real time. The inverter adjusts the charge and discharge currents based on the SOH; for example, when the SOH is less than 80%, it automatically reduces the charge current to 80% of the rated value to prevent accelerated battery degradation and extend its service life.

V. Conclusions and Future Directions

This 50 kW distributed solar-storage hybrid power generation system achieves its core objectives of “high-efficiency power generation, stable energy storage, and reliable power supply” through an optimized technical architecture, precise equipment parameter matching, and advanced control strategies. The system generates an average daily output of approximately 247.4 kWh, with a bidirectional energy storage efficiency of 86% and an overall design life of 20 years, offering significant advantages in both technical performance and cost-effectiveness.

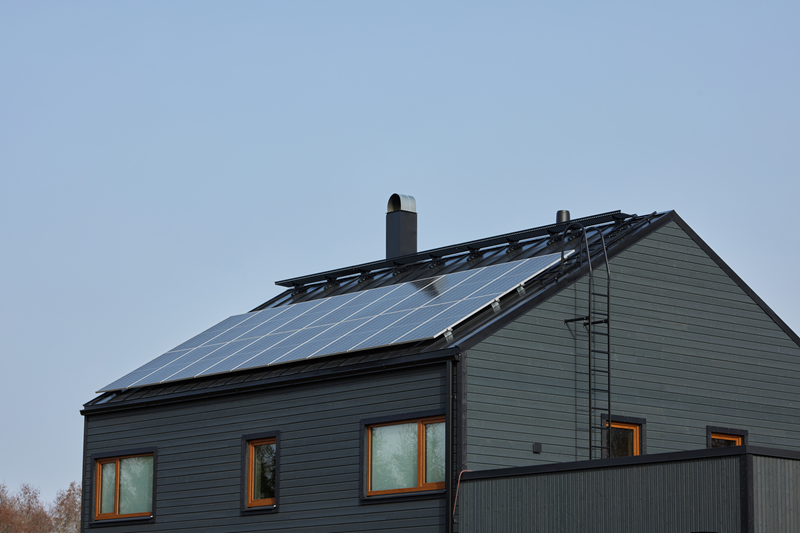

Residential PV-Storage System in Estonia

From a technological development perspective, potential areas for further optimization in the future include:

AI-powered Energy Dispatching

By incorporating machine learning algorithms and leveraging historical power generation data, load data, and weather forecasts, we can achieve more precise energy dispatch and further improve energy efficiency.

Modular expansion

Featuring a standardized modular design, it supports flexible power expansion from 10 kW to 100 kW to meet the capacity needs of different users.

Direct Flexible Control of Photovoltaic-Storage Systems

By integrating “photovoltaic-storage-direct-flexible” technology into buildings, this approach achieves deep integration between the power system and building electricity consumption, providing buildings with “flexible power consumption” capabilities and supporting the development of a new power system.

This system not only meets the energy needs of commercial, industrial, and public facilities but also offers effective solutions for renewable energy integration, grid peak shaving, and reducing user costs, making it highly valuable for widespread adoption and application.
