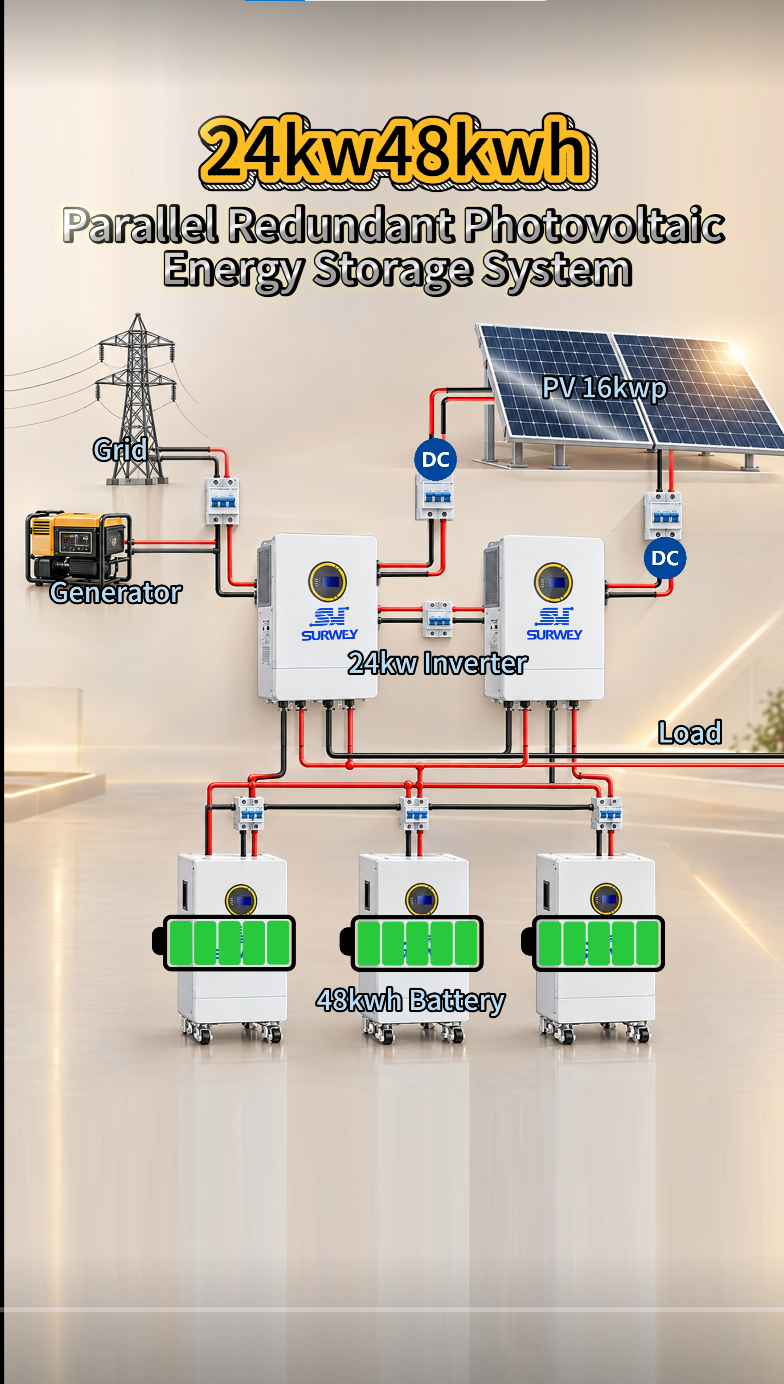

Working Principle Video of 24kW/48kWh Parallel Redundant Hybrid PV-ESS System
This 24kW/48kWh parallel redundant hybrid PV energy storage system supplies loads with solar power first, and excess power charges batteries. Batteries discharge when sunlight is insufficient. It connects to grid and diesel generator for automatic multi-source power switching. Parallel inverters provide redundant power supply. Production will not stop if one unit fails, ensuring stable power for oil mills and greatly cutting diesel consumption.
-

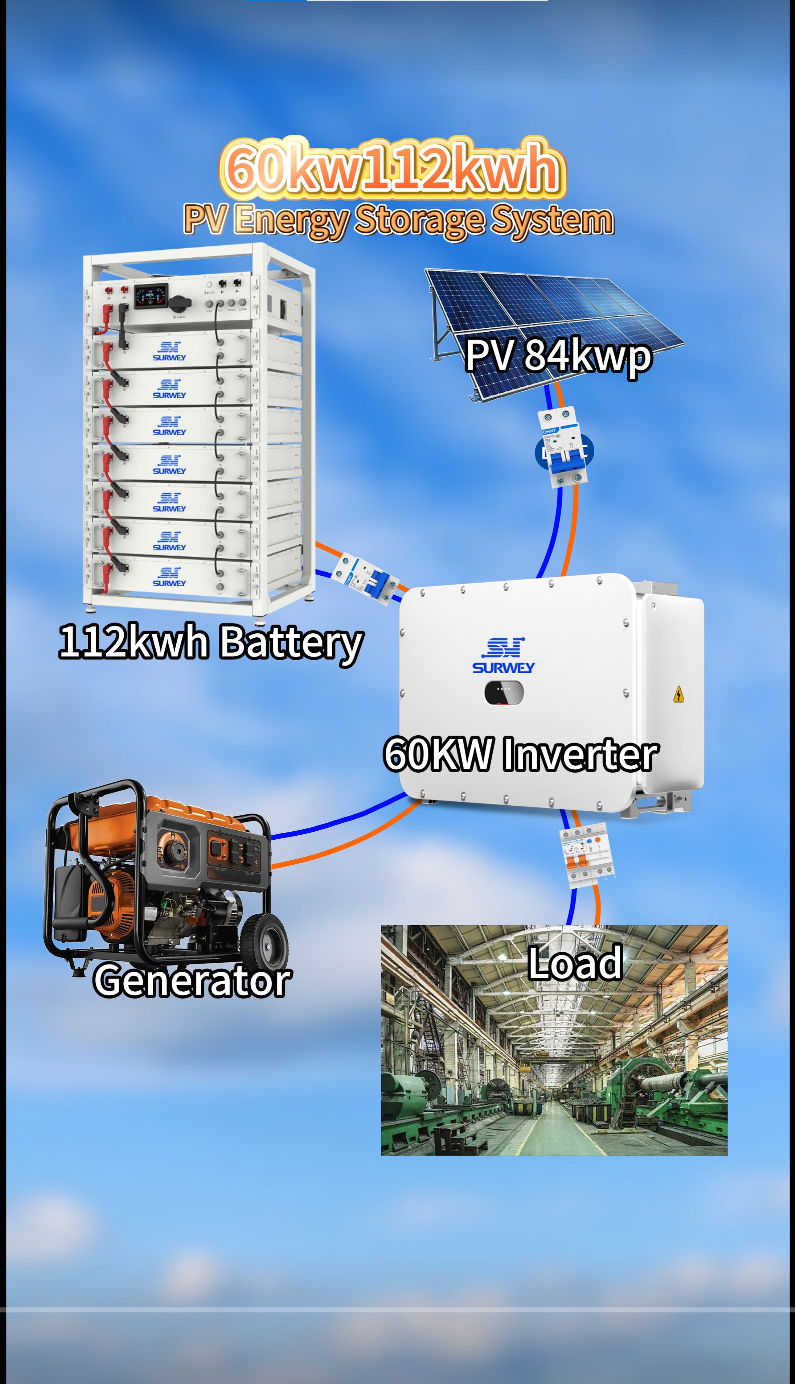

Working Principle Video of 60kW/112kWh PV-Storage-Diesel Microgrid System
60kW/112kWh PV-storage-diesel microgrid uses an 84kWp PV array to deliver DC power to the 60kW hybrid inverter. Solar energy powers site loads first, with excess stored in the 112kWh lithium battery. The battery stabilizes PV fluctuations and absorbs AC startup surges. In low sunlight, it works with the diesel generator to maintain uninterrupted power and reduce fuel use, perfect for desert temporary camps.
-

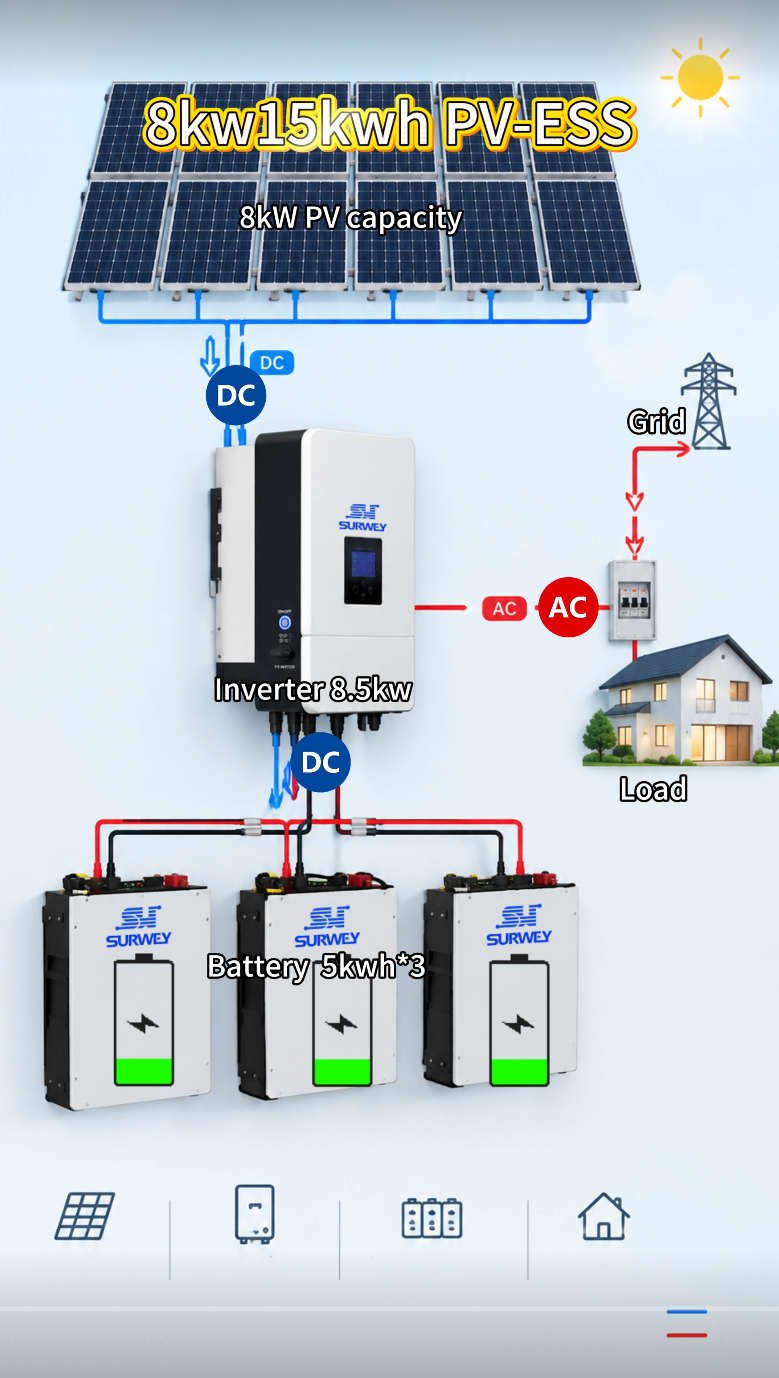

Working Principle Video of 8.5kW/15kWh Hybrid Grid PV Energy Storage System
8.5kW/15kWh hybrid PV-ESS converts solar power into DC electricity via PV panels and feeds it into the hybrid inverter. Solar power supplies household loads first, and excess energy is stored in three 5kWh batteries. It works in grid-tied mode for self-consumption when grid is available. Once grid fails, it automatically switches to off-grid mode. PV and batteries jointly power loads to guarantee uninterrupted electricity for areas with unstable grids.
-

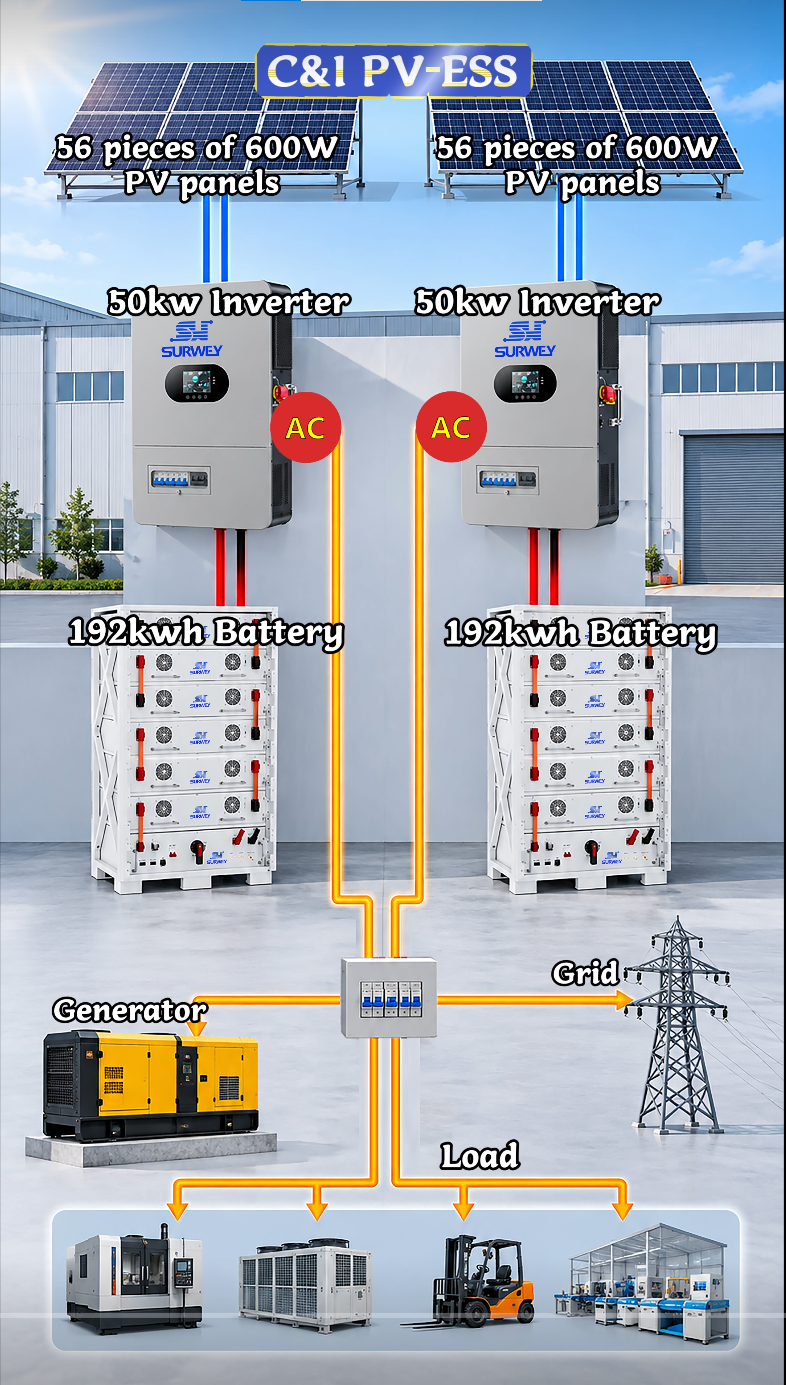

Working Principle Video of 100kW/384kWh C&I PV-ESS
This 100kW/384kWh C&I PV-ESS adopts two 50kW inverters in parallel. 112 pieces of 600W PV panels harvest solar energy and store power in two 192kWh battery packs. It supports grid and generator multi-source input. Solar power is consumed first, and surplus energy is stored. During blackouts, batteries or generators supply power automatically to maintain stable operation of factory loads.
-

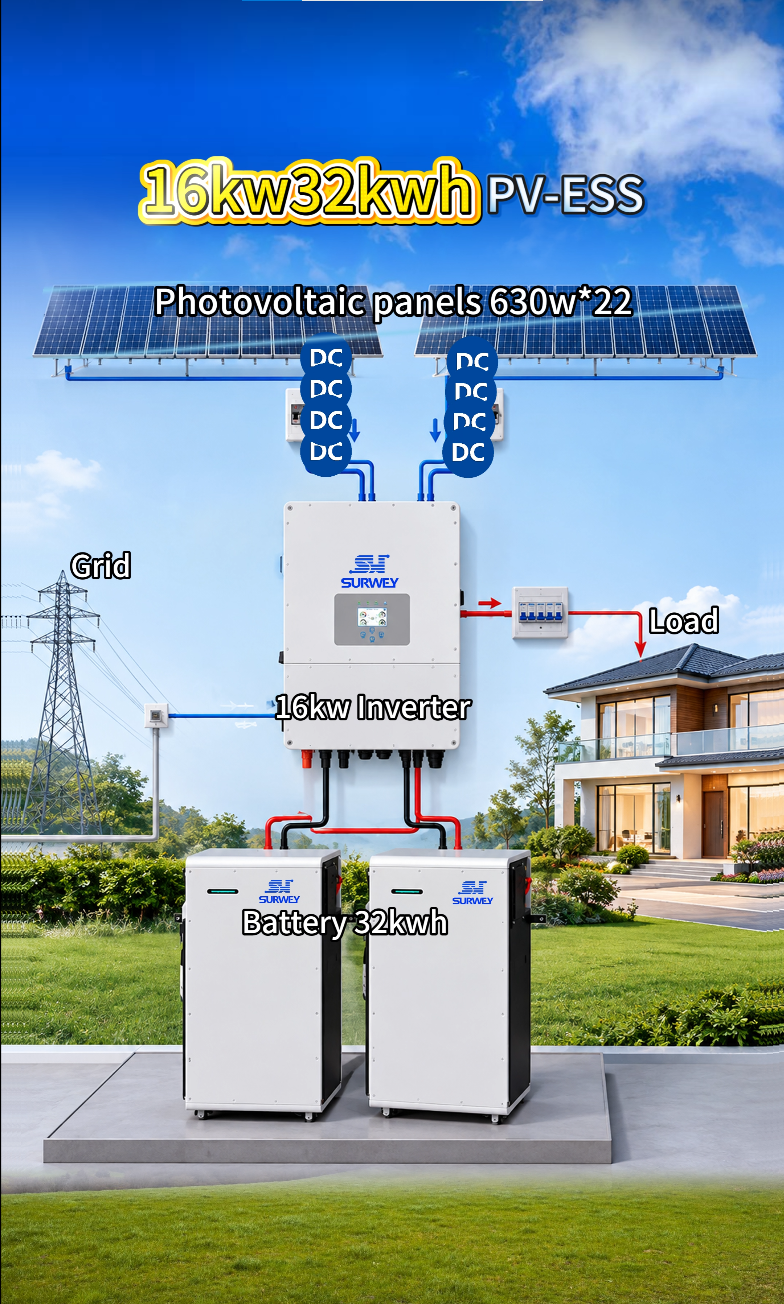

Working Principle Video of 16kW/32kWh PV Energy Storage System
This 16kW/32kWh PV energy storage system is equipped with 22 pieces of 630W solar panels, matched with a 16kW hybrid inverter and 32kWh energy storage battery. It can connect to the utility grid. Solar power is generated in daytime and excess energy is stored in batteries. It automatically switches power during blackouts to supply loads for villas and large residences, delivering stable power and energy independence.
-
Working Principle Video of 3kW 2.5kWh Off-Grid Solar Energy Storage System
This 3kW/2.5kWh off-grid solar storage system uses four 650W PV panels to capture solar energy. DC power feeds into a 3kW hybrid inverter, with a 2.5kWh lithium battery storing surplus power. Solar energy directly supplies loads or charges the battery by day, while the battery delivers inverted power at night. Modular in installation, it adapts to dusty highlands with wide temperature swings to power household lighting, TVs and fans.
-
Working Principle Video of 30kW/40kWh Commercial & Industrial Photovoltaic Energy Storage System
This 30kW/40kWh commercial and industrial photovoltaic energy storage system is equipped with a 30kW hybrid inverter and a 40kWh battery pack. Solar panels harvest solar energy during the day, and surplus power is stored in batteries. Connected to the grid, the system switches automatically during power outages to guarantee stable power supply for factory loads. Ideal for small and medium-sized factories, it provides reliable backup power and reduces production losses caused by blackouts.
-
Video: How the 6kW 32kWh Home Solar Battery System Works
This 6kW residential PV energy storage system is equipped with 14 pieces of 650W solar panels and two 16kWh batteries for a total capacity of 32kWh. Two strings of 7 panels connect to the hybrid inverter, supporting both grid-tied and off-grid backup modes. With 45kWh daily generation, it reliably powers up to three air conditioners, water pumps, deep freezers and household appliances. Ideal for Nigerian residences with frequent blackouts to secure continuous home power supply.
